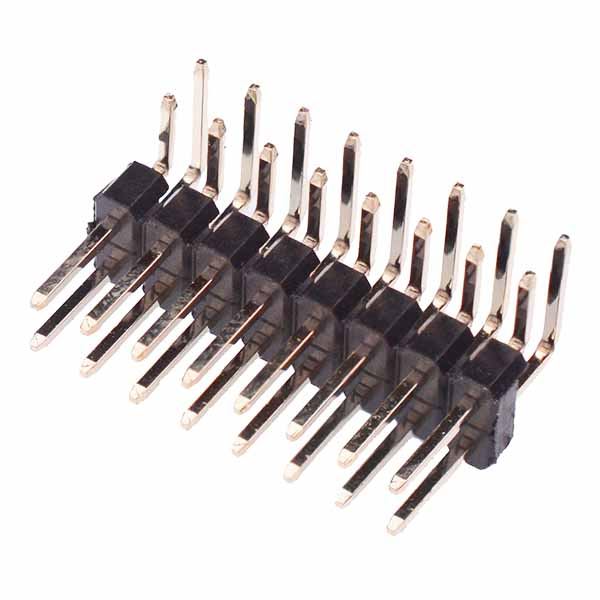

16-Way Double Row Right Angle Male Header 2.54mm

SKU 483063

MPN: 483063

Availability:
773 in stock
Original price £0.26 - Original price £0.26
Original price
£0.26 Inc VAT
£0.26 - £0.26
Current price £0.26 Inc VAT
16 way double row right angle PCB header suitable for a range of applications including use with PCBs, flat cables etc.

  • Gold plated brass contacts
  • 0.64mm pin diameter
  • Solder termination
  • Pitch: 2.54mm
  • 6mm pin height
  • Can easily be separated
  • Specification
    Back order lead time 30 Days
    Contact material Gold Plated Brass
    Current rating 3A
    Housing material PA6T
    Moq 5
    Mounting type PCB Mount
    Number of pins 16
    Number of ways 16
    Operating temperature -40°C to +105°C
    Pitch 2.54mm
    Termination method Solder
