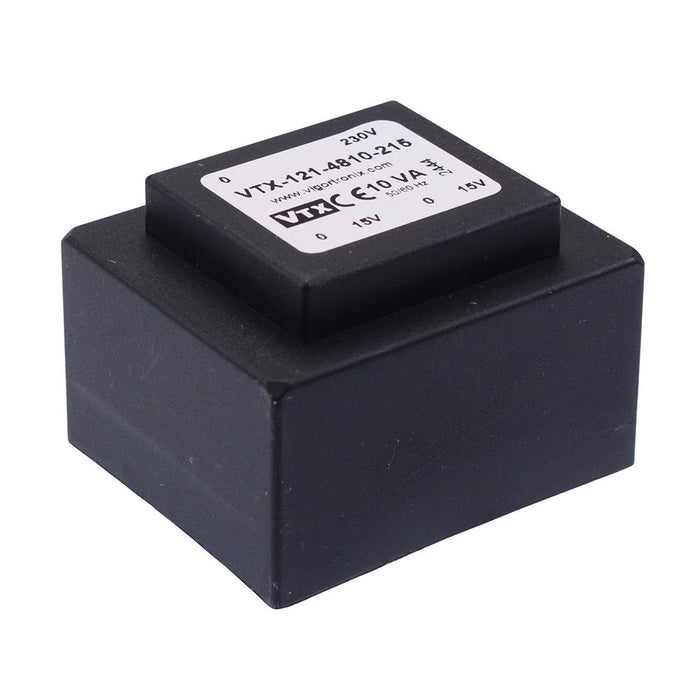

15V 10VA Encapsulated PCB Transformer 230V VTX-121-4810-215
by Vigortronix
SKU 486986
MPN: VTX-121-4810-215
Availability:
8 in stock
Original price
£11.30
-
Original price
£11.30
Original price
£11.30
£11.86
£11.86
-
£11.86
Current price
£11.86
15V high performance encapsulated PCB transformer manufactured by Vigortronix, featuring a single primary winding and 230V input voltage. The transformer features a 10VA power rating and is suitable for applications in rugged environments due to their construction and encapsulation.
230V input voltage 2 x 15V output voltage 10VA power rating 333mA output current Inherently Short-circuit proof Materials: UL94-V0 Manufactured and tested in accordance to EN61558, EN60950, CE UL, VDE and CE approved Dimensions: 51 x 43 x 34.5mm (length x width x height)
Specification
| Back Order Lead Time | 5 Days |
| Dielectric Strength | 4200Vrms |
| Height | 34.5mm |
| Length | 51mm |
| Maximum Ambient Temperature | 40°C |
| Output Current | 0.333A |
| Power | 10VA |
| Primary Voltage | 230V |
| Secondary Voltage | 2 x 15V |
| Weight | 290g |
| Width | 43mm |
