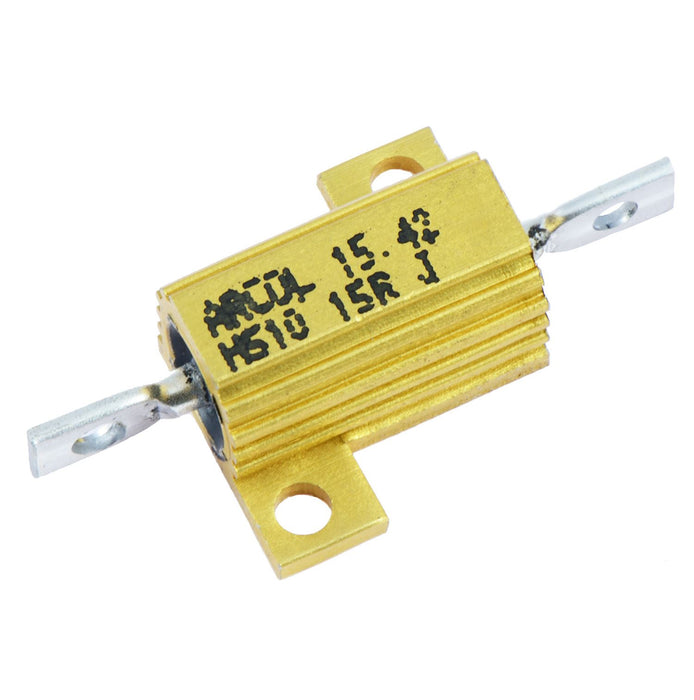

15R Arcol 10W Aluminium Clad Resistor HS10
by Arcol
SKU 399040
MPN:
Availability:
Out of stock
Sold out
Original price
£2.03
-
Original price
£2.03
Original price
£2.03
£2.03
-
£2.03
Current price
£2.03
Arcol 10W aluminium clad resistors suitable for a wide range of applications where a high power dissipation is required. The resistors have a small package and are designed for direct heatsink mounting.
High power to volume
Wound to maximise high pulse capability 5% tolerance Solder terminations Features 2 mounting holes Arcol HS series
Specification
| Back Order Lead Time | 10 Days |
| Dimensions | 30.0 x 16.5 x 8.8mm (Length x Width x Height) |
| Heatsink Area | 415cm² |
| Limiting Element Voltage | 160V |
| mpn | HS10 15R J |
| Operating Temperature | -55°C to +200°C |
| Packaging | Bulk |
| Power Rating | 10W |
| Resistance | 15Ω |
| Temperature Coefficient | ±100ppm/°C |
| Termination | Solder Lug |
| Tolerance | ±5% |
