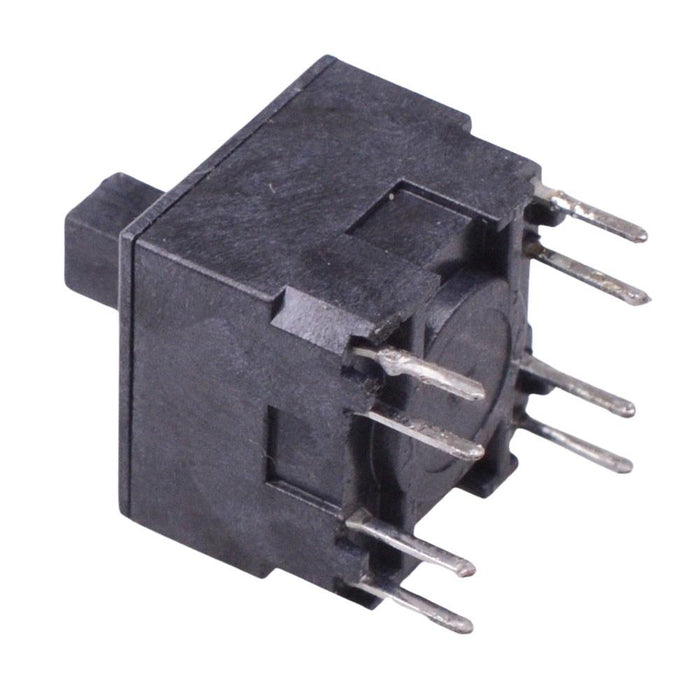

1545209 MEC 8 Contact 2 Pole Latching Switch Unimec
by MEC
SKU 489750
MPN: 1545209
Availability:
39 in stock
Original price
£5.71
-
Original price
£5.71
Original price
£5.71
Inc VAT
£5.71
-
£5.71
Current price
£5.71
Inc VAT
The 1545209 is a highly reliable switch with a unique 8 contact design with a latching function. The Unimec switches are known for their crisp, audible, tactile feel and feature a lifespan up to 10,000 cycles.
2 poles 8 contact functions Latching operation Sealed to IP54 Gold terminals Dimensions: 12.6 x 12.6 x 15.7mm (length x width x height)
Specification
| Actuation | Latching |
| Contact material | Gold Plated |
| Contact rating | 150mA 120V |
| Current rating | 250mA |
| Height | 15.7mm |
| Moq | 1 |
| Mounting style | PCB |
| Number of poles | 2 |
| Number of positions | 2 |
| Operating force | 2.5N |
| Operating temperature | -40°C to +160°C |
| Pitch | 12.6 x 12.6mm |
| Terminal type | Through Hole |
| Voltage rating | 120V |
