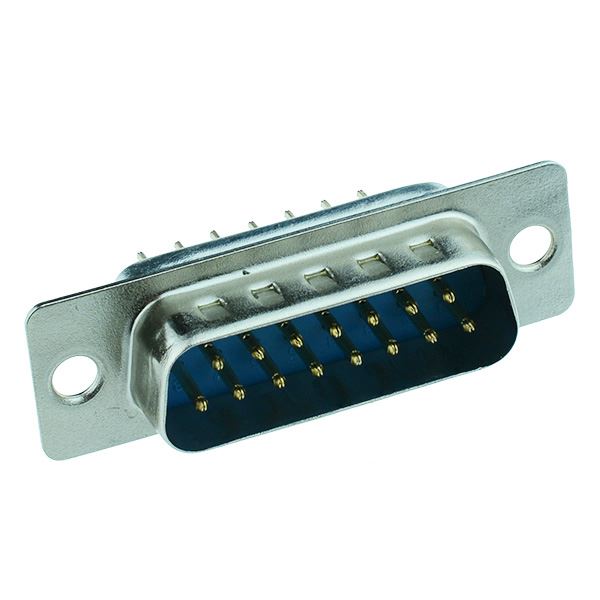

15-Way Male PCB D Plug Connector
SKU 480200
MPN: 480200
Availability:
377 in stock
Original price
£0.53
-
Original price
£0.53
Original price
£0.53
£0.53
£0.53
-
£0.53
Current price
£0.53
Straight D plug with 15 ways suitable for PCB mounting. The connector features a 2.77mm pitch and solder termination.
- 15 ways
- Straight orientation
- Fixing centres: 33.32mm
- Width: 39.14mm
- Housing material: PBT+30% glass fiber (UL94V-0)
- Contact material: brass or phosphor bronze
Specification
| Back Order Lead Time | 150 |
| Contact Material | Gold Plated Brass |
| Contact Pitch | 2.77mm |
| Gender | Male |
| Housing Material | PBT |
| MOQ | 5 |
| Mounting Hole Pitch | 33.32mm |
| Mounting Type | PCB |
| Number of Ways | 15 |
| Operating Temperature | -40°C to +105°C |
| Termination Method | Solder |
