15 Way D Sub Connector Male Plug 3 Rows

SKU 489577

MPN: RE-C-214-15-M-L

Availability:
299 in stock
Original price £0.54 - Original price £0.54
Original price
£0.54 Inc VAT
£0.54 - £0.54
Current price £0.54 Inc VAT

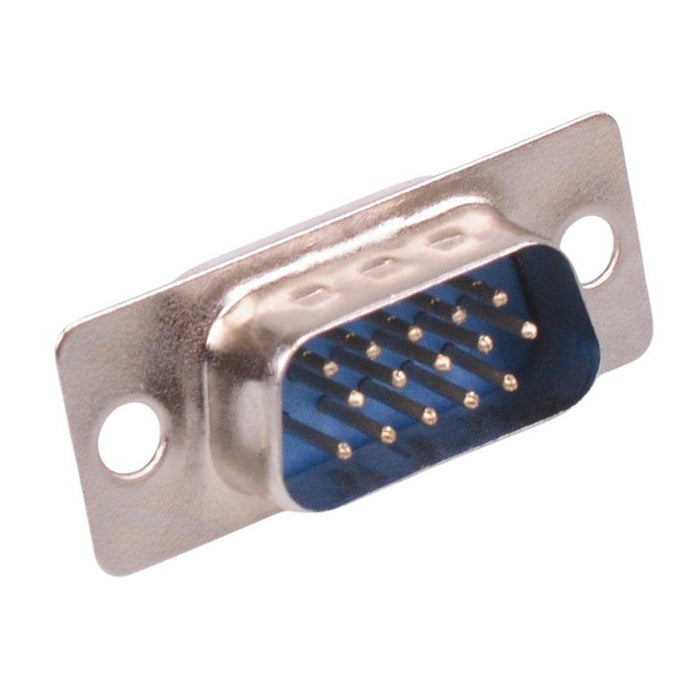

Male D sub connector featuring 15 ways compromised in 3 rows, suitable for panel mounting. The connector features 25.0mm mounting hole pitch and solder termination.

  • 15 ways
  • Straight orientation
  • Solder termination
  • Fixing centres: 25.0mm apart
  • Width: 30.8mm
  • Housing material: PBT+30% glass fiber (UL94V-0)
  • Contact material: gold plated brass
  • Mounting hole diameter: 3.2mm
  • Specification
    Back order lead time 120 Days
    Contact material Gold Plated Brass
    Current rating 5A
    Gender Male
    Housing material PBT
    Moq 1
    Mounting hole pitch 25.00mm
    Mounting type Panel
    Number of ways 15
    Operating temperature -55°C to +105°C
    Termination method Solder
