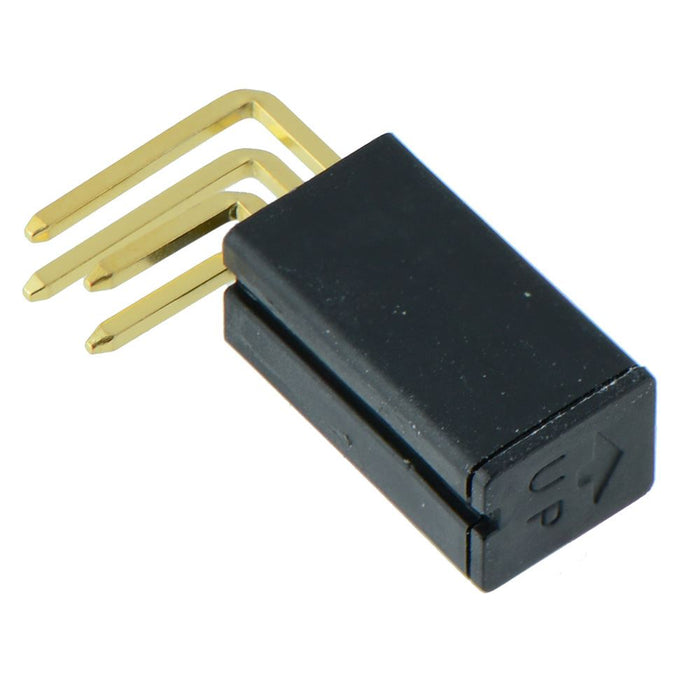

15° Roll Ball Tilt Switch 25mA 24V - RBS040200

by Comus
SKU 552552

MPN: RBS040200

Availability:
15 in stock
Original price £1.02 - Original price £1.02
Original price
£1.02 Inc VAT
£1.02 - £1.02
Current price £1.02 Inc VAT
RBS040200 is a tilt or tip-over switch designed to trigger an IC. The switch features gold plated terminals for improved life and stability. Suitable for applications including security alarm systems, electronic toys, anti tamper devices and consumer electronics.

  • Differential angle: 15°
  • Horizontal PCB mounting
  • Maximum voltage: 24V DC/AC
  • Maximum current: 25mA
  • Dimensions: 6 x 5 x 11mm
  • Specification
    Contact configuration Dependant on Position
    Differential angle 15°
    Material Glass Fibre Polyamide UL94V-0
    Maximum switching current 25mA
    Maximum switching voltage 24VDC
    Operating temperature -25°C to +70°C
    Request a quote
