1415NC7 Ivory Momentary Changeover Push Button Switch SPDT 3A
by APEM
SKU 489770
MPN: 1415NC7
Availability:
8 in stock
Original price
£5.66
-
Original price
£5.66
Original price
£5.66
Inc VAT
£5.66
-
£5.66
Current price
£5.66
Inc VAT

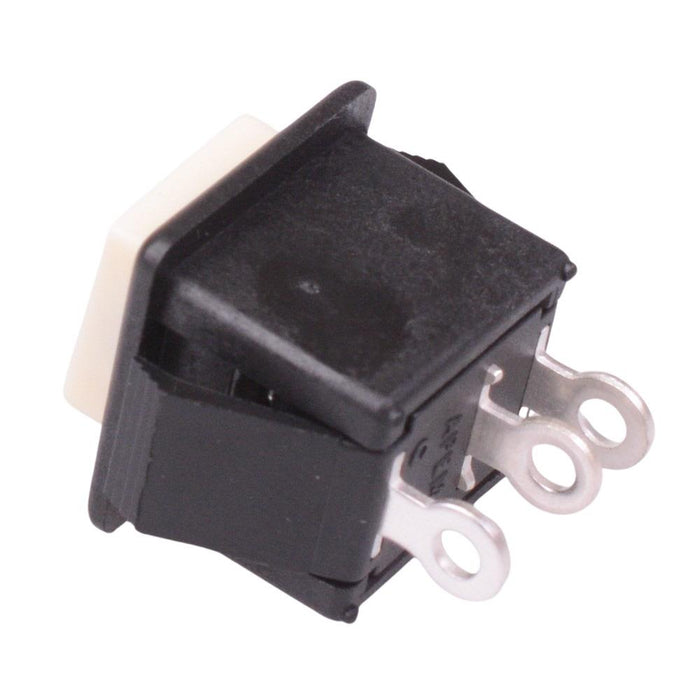

The 1415NC7 is a ivory momentary push button switch with snap-in mounting and changeover contacts. The switch features a square plunger and solder terminals making it suitable for panel mounting applications.
SPDT changeover contacts Solder terminals Square plunger Rating: 3A 12VDC Panel cut-out: 14.3 x 16.5mm Panel thickness: 2mm max
Specification
| Actuation | Momentary |
| Colour | Ivory |
| Contact configuration | SPST |
| Contact material | Gold Plated Silver |
| Contact rating | 3A 12VDC |
| Current rating | 3A |
| Electrical life | 10,000,000 Cycles |
| Illuminated | No |
| Material | Polyamide |
| Moq | 1 |
| Mounting style | Panel |
| Number of poles | 1 |
| Number of positions | 2 |
| Operating temperature | -20°C to +55°C |
| Panel cut out | 16.5 x 14.3mm |
| Panel thickness | 2mm |
| Product series | 1400N |
| Switch operation | On-(On) |
| Terminal type | Solder |
| Voltage rating | 12VDC |
