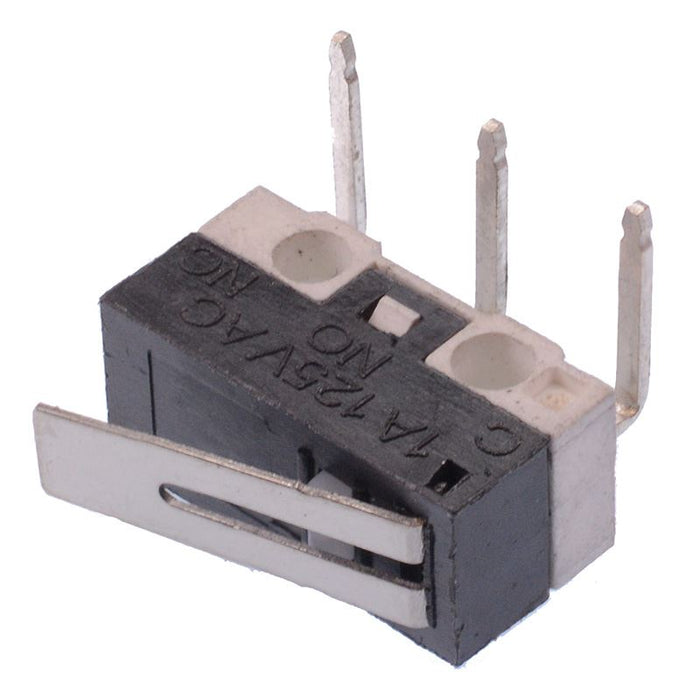

13mm Lever Subminiature Horizontal PCB Microswitch SPDT 3A

SKU 483513

MPN: 483513

Availability:
947 in stock
Original price £0.46 - Original price £0.46
Original price
£0.46 Inc VAT
£0.46 - £0.46
Current price £0.46 Inc VAT
Subminiature microswitch featuring a 13mm lever actuator housed in a compact package capable of switching up to 3A. The switch features left hand PCB terminals and is suitable for a wide range of applications.

  • 13mm lever actuator
  • Rating: 3A 250VAC
  • NO / NC contacts
  • Left hand PCB terminals
  • Body dimensions: 12.8 x 5.8 x 6.5mm (Length x Width x Height)
  • Specification
    Back order lead time 45 Days
    Contact configuration SPDT
    Contact rating 3A 250VAC
    Current rating 3A
    Electrical life 50,000 Cycles
    Mounting style PCB
    Number of positions 2
    Operating force 100gf
    Operating temperature -25°C to +85°C
    Terminal type Through Hole
    Voltage rating 250VAC
