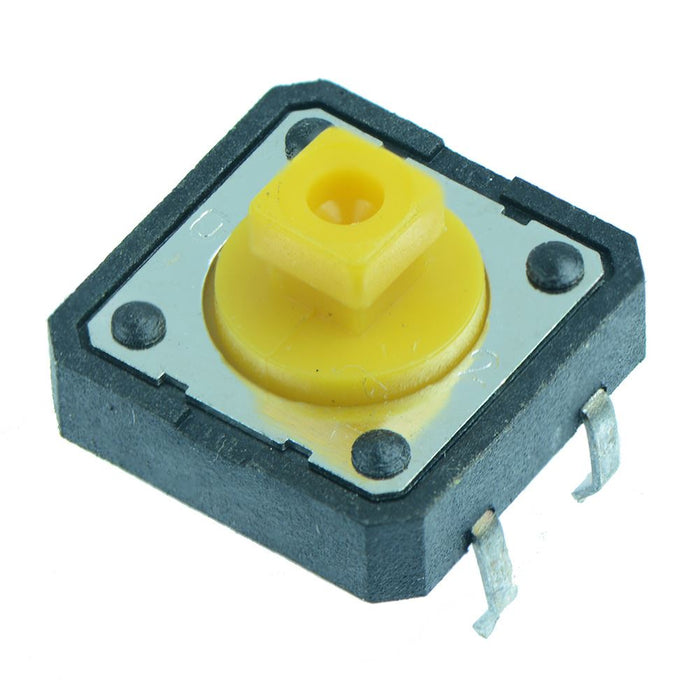

12x12mm Square Actuator Momentary PCB Tactile Switch 7.3mm Height
SKU 122034
MPN: 122034
Availability:
88174 in stock
Original price
£0.12
-
Original price
£0.12
Original price
£0.12
£0.12
-
£0.12
Current price
£0.12
Tactile switches in standard 12 x 12mm size suitable for PCB mounting.
7.3mm height Square actuator can be used with caps SPST normally open contacts Positive click action 4 terminal mounting
Specification
| Actuation | Momentary |
| Back Order Lead Time | 30 Days |
| Contact Configuration | SPST |
| Contact Rating | 50mA 12VDC |
| Current Rating | 50mA |
| Electrical Life | 100,000 Cycles |
| Height | 7.3mm |
| MOQ | 10 |
| Mounting Style | PCB |
| Number of Positions | 2 |
| Operating Force | 180gf |
| Operating Temperature | -20°C to +70°C |
| Switch Operation | Off-(On) |
| Terminal Type | Through Hole |
| Voltage Rating | 12VDC |
