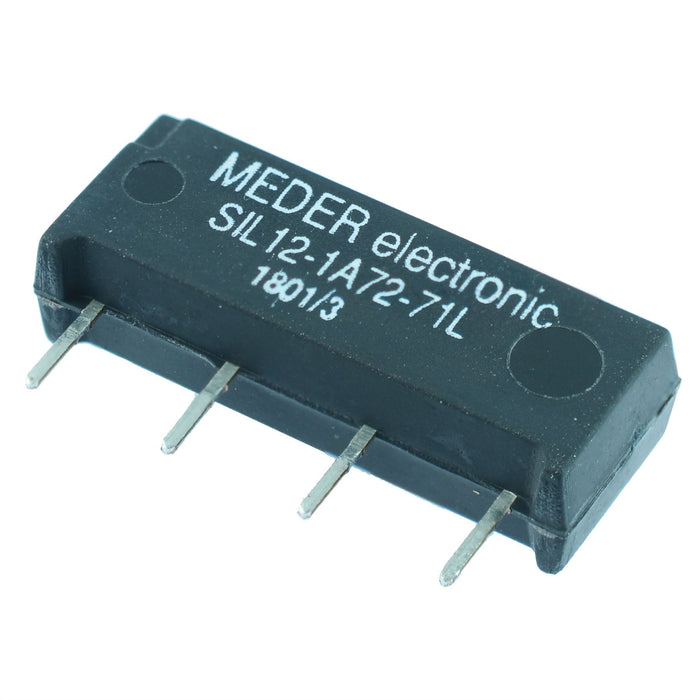

12VDC Normally Open Reed Relay SPST SIL12-1A72-71L

by Meder
SKU 481076

MPN: SIL12-1A72-71L

Availability:
13 in stock
Original price £3.22 - Original price £3.22
Original price
£3.22
£3.22 - £3.22
Current price £3.22
The SIL12-1A72-71L is a general purpose 12V single in-line reed relay featuring SPST normally open contacts. The relay features a low profile compact design, compatible with SIL sockets.

  • Coil voltage: 12VDC
  • Pull-in voltage: 8.4VDC Max
  • Drop-out voltage: 1.8VDC Min
  • Maximum switching power: 10W
  • Maximum switching voltage: 200VAC
  • Maximum switching current: 0.5A
  • Maximum carry current: 1A
  • Maximum release time: 0.7ms
  • Dimensions: 19.2 x 5.08 x 7.62mm
  • Specification
    Ambient Temperature -20°C to +85°C
    Back Order Lead Time 5 Days
    Coil Resistance 1000Ω
    Coil Voltage 12VDC
    Contact Arrangement SPST-NO
    Maximum Switching Current 0.5A
    Maximum Switching Voltage 200VAC
    Mounting Type PCB
    Number of Contacts 4
    Terminal Type Through Hole
