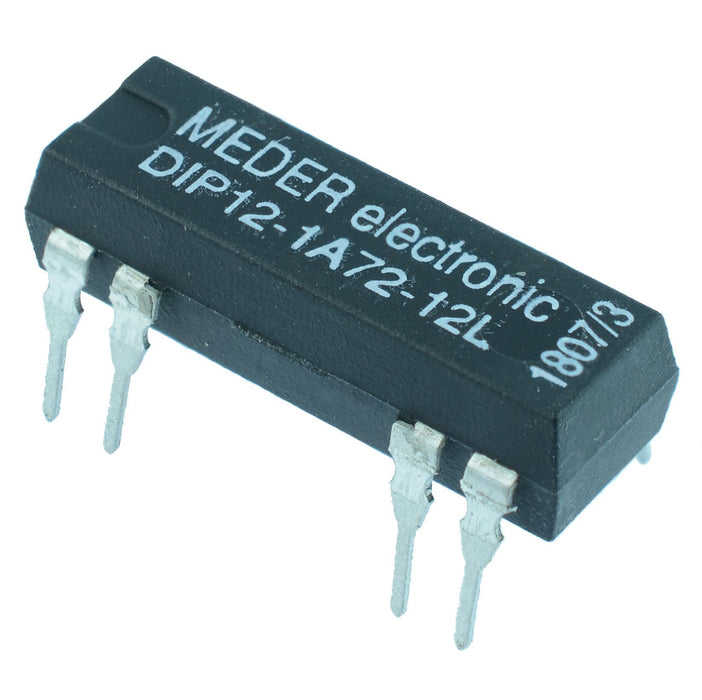

12VDC Normally Open Reed Relay SPST DIP12-1A72-12L
by Meder
SKU 481073
MPN: DIP12-1A72-12L
Availability:
10 in stock
Original price
£4.36
-
Original price
£4.36
Original price
£4.36
Inc VAT
£4.36
-
£4.36
Current price
£4.36
Inc VAT
The DIP12-1A72-12L is a general purpose 12V dual in-line reed relay featuring SPST normally open contacts. The relay features a low profile compact design, compatible with DIP relays.
Features magnetic shield 12 Pin Out Coil voltage: 12VDC Pull-in voltage: 8.4VDC Max Drop-out voltage: 1.8VDC Min Maximum switching power: 10W Maximum switching voltage: 200VAC Maximum switching current: 0.5A Maximum carry current: 1A Maximum release time: 0.1ms
Specification
| Ambient temperature | -35°C to +95°C |
| Back order lead time | 5 Days |
| Coil resistance | 1000Ω |
| Coil voltage | 12VDC |
| Contact arrangement | SPST-NO |
| Maximum continuous voltage | 16VDC |
| Maximum switching current | 0.5A |
| Maximum switching voltage | 200VAC |
| Mounting type | PCB |
| Number of contacts | 8 |
| Terminal type | Through Hole |
