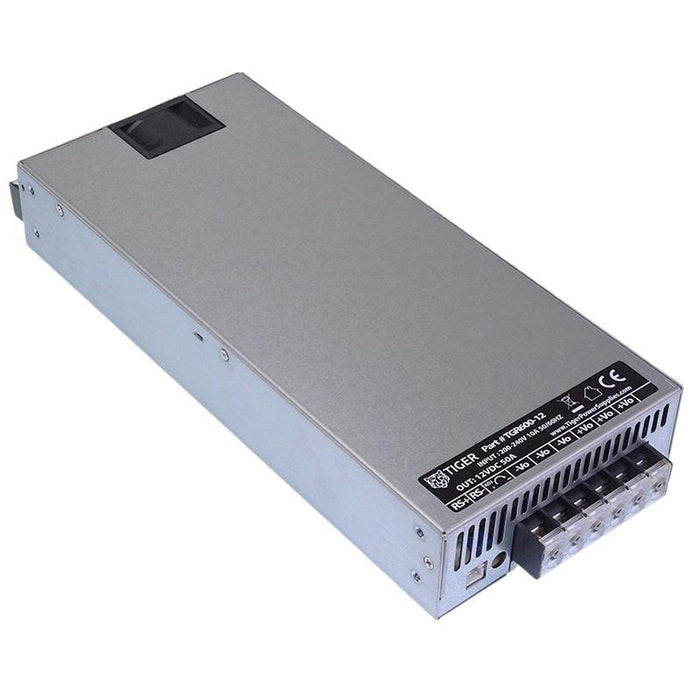

12VDC 50A 600W Industrial Enclosed Power Supply

SKU 484422

MPN: 484422

Out of stock
Sold out
Original price £86.59 - Original price £86.59
Original price
£86.59 Inc VAT
£86.59 - £86.59
Current price £86.59 Inc VAT
600W 12VDC enclosed AC-DC switching power supply featuring a built-in DC fan and accepts AC or DC input. The power supply provides excellent efficiency and reliability, suitable for industrial applications including LED, lighting, security, telecommunications etc.

  • Power: 600W
  • Nominal output: 12VDC / 50A
  • Output voltage adjustable range: 10-13.5VDC
  • AC Input voltage: 176-264VAC
  • DC Input voltage: 240-373VDC
  • Low standby power consumption, high efficiency
  • Output short circuit, over-current, over-voltage, over-temperature protection
  • LED indicators for power On
  • Meets IEC/ EN61000-4, CISPR32/EN55032, IEC/UL/EN62368, GB4943 standards
  • Dimensions: 267.3 x 106 x 40mm (Length x Width x Height)
  • Specification
    Ambient temperature -30°C to 60°C
    Back order lead time 5 Days
    Input frequency 47-63Hz
    Input voltage 176-264VAC / 240-373VDC
    Output connector Terminal Block
    Output current 50A
    Output voltage 12VDC
    Over current protection Yes
    Over temperature protection Yes
    Over voltage protection Yes
    Power rating 600W
    Short circuit protection Yes
