12V Subminiature PCB Relay DPDT 2A
by AFE
SKU 481876
MPN: BSVR-SS-212L
Availability:
Out of stock
Sold out
Original price
£1.22
-
Original price
£1.22
Original price
£1.22
Inc VAT
£1.22
-
£1.22
Current price
£1.22
Inc VAT

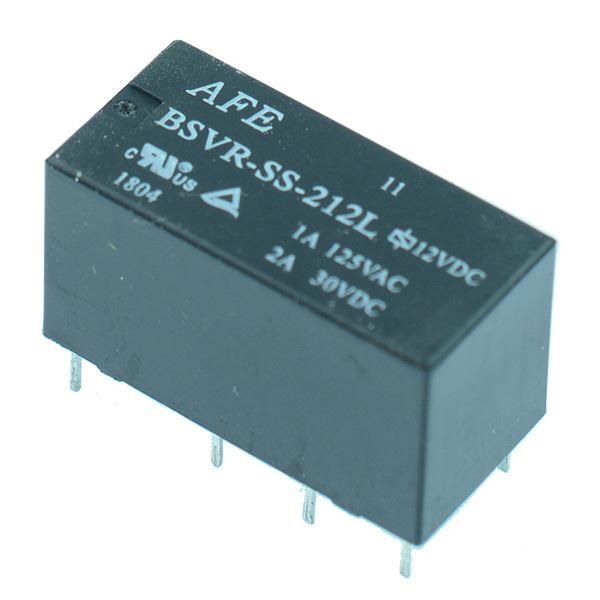

12V subminiature relay housed in a sealed compact package suitable for mounting to PCBs. The relay features DPDT contact configuration and 2A maximum current rating, making it suitable for a wide range of applications including household appliances.
Coil voltage: 12V Contact configuration: DPDT Contact capacity: 1A 125VAC, 2A 30VDC Maximum current: 2A Maximum voltage: 125VAC, 30VDC Dimensions: 20.1 x 10 x 12mm (Length x Width x Height)
Specification
| Back order lead time | 30 Days |
| Coil resistance | 720Ω |
| Coil voltage | 12VDC |
| Contact arrangement | DPDT |
| Maximum continuous voltage | 15.6VDC |
| Maximum switching current | 2A |
| Maximum switching voltage | 125VAC / 30VDC |
| Mounting type | PCB |
| Number of contacts | 8 |
| Power consumption | 0.2W |
| Terminal type | Through Hole |
