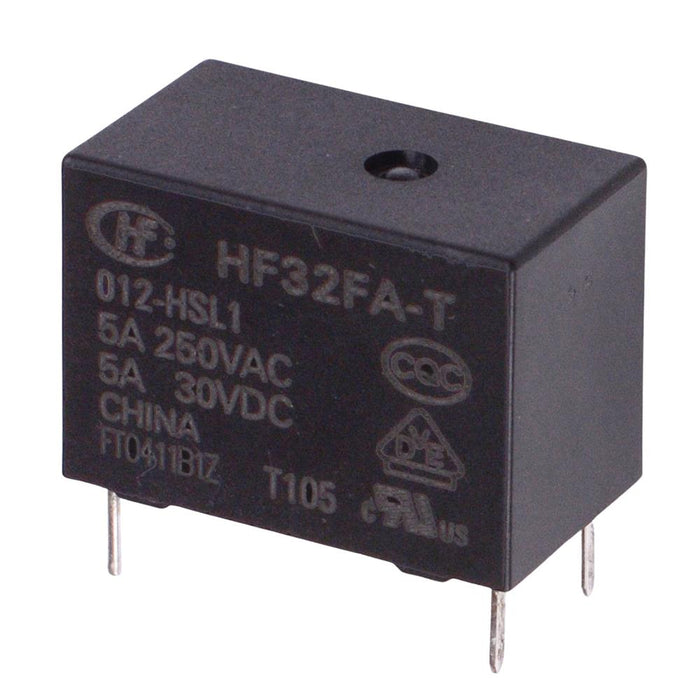

12V Subminiature PCB Power Relay 5A SPNO HF32
by HongFa
SKU 550021
MPN: HF32FA-012-HSL1
Availability:
279 in stock
Original price
£1.02
-
Original price
£1.02
Original price
£1.02
Inc VAT
£1.02
-
£1.02
Current price
£1.02
Inc VAT
Sub-miniature power relay. SPNO contact configuration and 5A maximum switching capability suitable for PCB mounting
Coil Voltage: 12V DC Sealed construction Contact rating: 5A 250VAC / 30VDC Maximum switching voltage: 250VAC / 30VDC Maximum switching current: 5A Dimensions: 17.6 x 10.1 x 12.3mm
Specification
| Ambient temperature | -40°C to +85°C |
| Back order lead time | 30 Days |
| Coil resistance | 720Ω |
| Coil voltage | 12VDC |
| Contact arrangement | SPNO |
| Maximum continuous voltage | 20.4VDC |
| Maximum switching current | 5A |
| Maximum switching voltage | 250VAC / 30VDC |
| Mounting type | PCB |
| Number of contacts | 4 |
| Power consumption | 0.2W |
| Terminal type | Through Hole |
