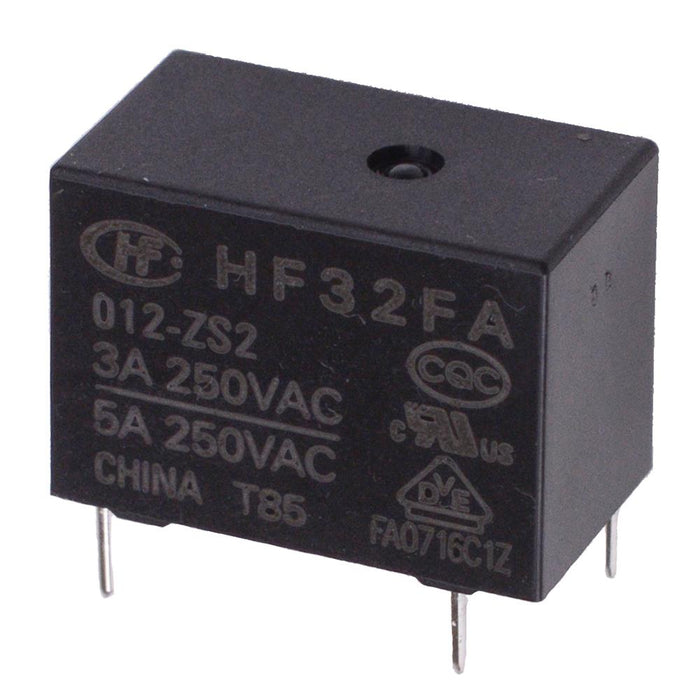

12V Subminiature PCB Power Relay 5A SPDT HF32

by HongFa
SKU 550022

MPN: HF32FA-012-ZS

Availability:
412 in stock
Original price £1.08 - Original price £1.08
Original price
£1.08 Inc VAT
£1.08 - £1.08
Current price £1.08 Inc VAT
Sub-miniature power relay. SPDT contact configuration and 5A maximum switching capability suitable for PCB mounting

  • Coil Voltage: 12V DC
  • Sealed construction
  • Contact rating: 3A 250VAC / 30VDC
  • Maximum switching voltage: 250VAC / 30VDC
  • Maximum switching current: 5A
  • Dimensions: 17.6 x 10.1 x 12.3mm
  • Specification
    Ambient temperature -40°C to +85°C
    Back order lead time 30 Days
    Coil resistance 320Ω
    Coil voltage 12VDC
    Contact arrangement SPDT
    Maximum continuous voltage 11.7VDC
    Maximum switching current 5A
    Maximum switching voltage 250VAC / 30VDC
    Mounting type PCB
    Number of contacts 5
    Power consumption 0.45W
    Terminal type Through Hole
