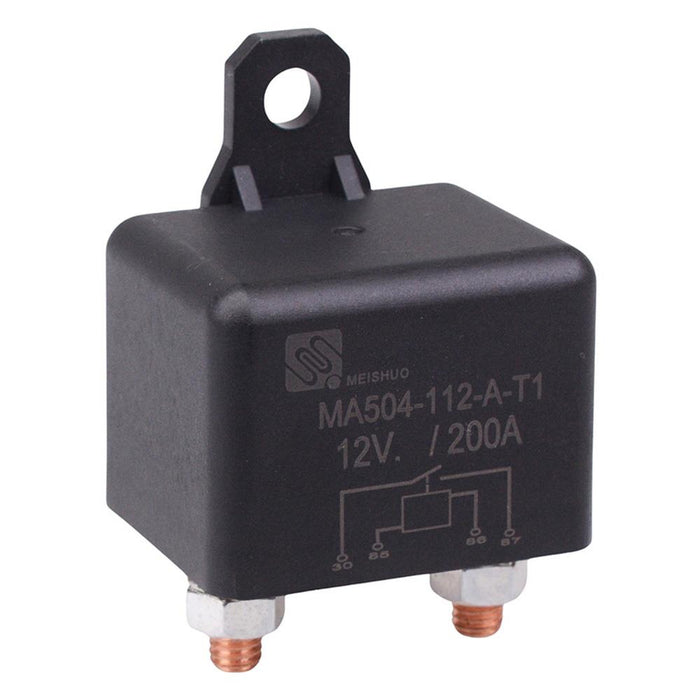

12V SPNO Heavy Duty Automotive Relay Bracket 200A MA504-112-A-T1
by Meishuo
SKU 490683
MPN: MA504-112-A-T1 200A
Availability:
Out of stock
Sold out
Original price
£7.68
-
Original price
£7.68
Original price
£7.68
£7.68
£7.68
-
£7.68
Current price
£7.68

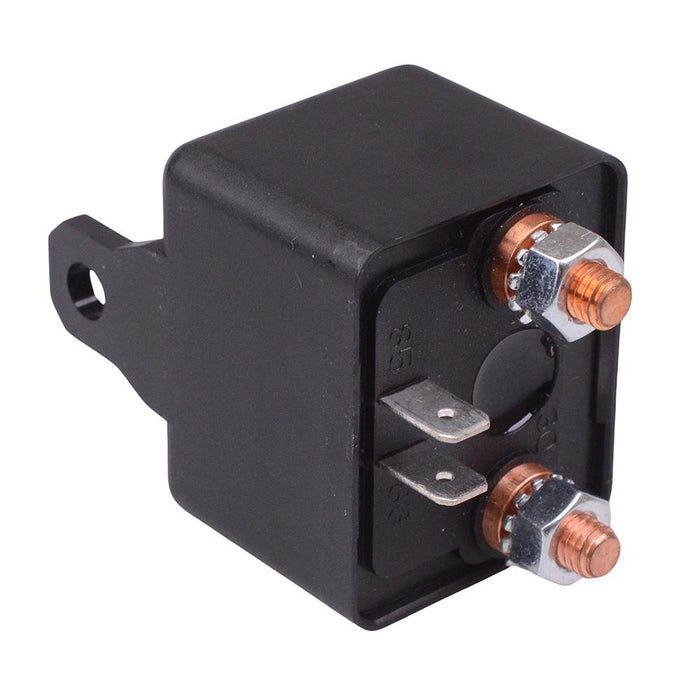

12V heavy duty automotive relay featuring SPNO contacts and 200A switching capability. The relay features 6.3mm quick connect and copper stud terminals, suitable for a wide range of automotive and marine applications.
Wide temperature range Switching current: 200A Coil voltage: 12VDC Coil power: 4.8W Contacts: SPNO Terminals: 6.3mm quick connect and copper stud Body dimensions: 44.8 x 37 x 33mm (width x depth x height)
Specification
| Ambient Temperature | -40°C to +75°C |
| Back Order Lead Time | 120 Days |
| Coil Resistance | 30Ω |
| Coil Voltage | 12VDC |
| Contact Arrangement | SPNO |
| Maximum Switching Current | 200A |
| MOQ | 1 |
| Mounting Type | Bracket |
| Number of Contacts | 4 |
| Power Consumption | 4.8W |
| Terminal Type | M6 Stud / Quick Connect |
