12V SPDT Mini Automotive Relay Diode Bracket 40A MAH-S-112-C-3D2
by Meishuo
SKU 491254
MPN: MAH-S-112-C-3D2
Availability:
365 in stock
Original price
£1.96
-
Original price
£1.96
Original price
£1.96
£1.96
£1.96
-
£1.96
Current price
£1.96

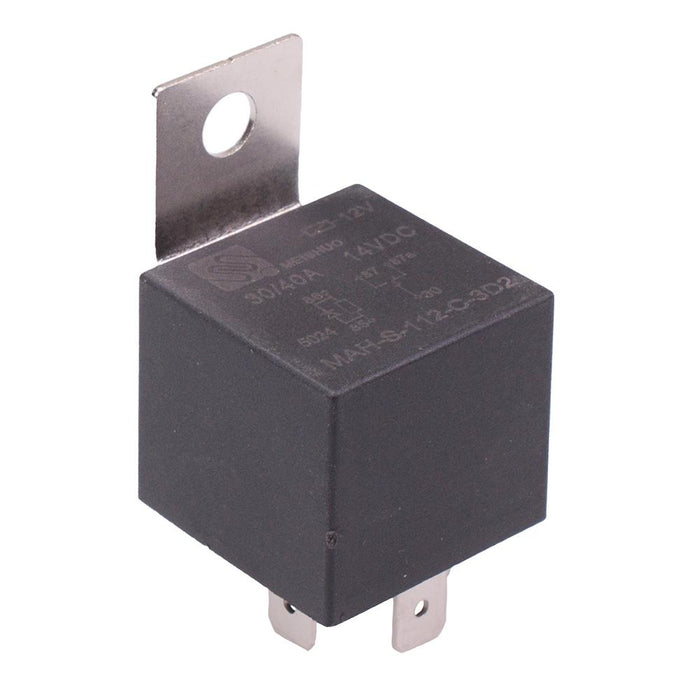

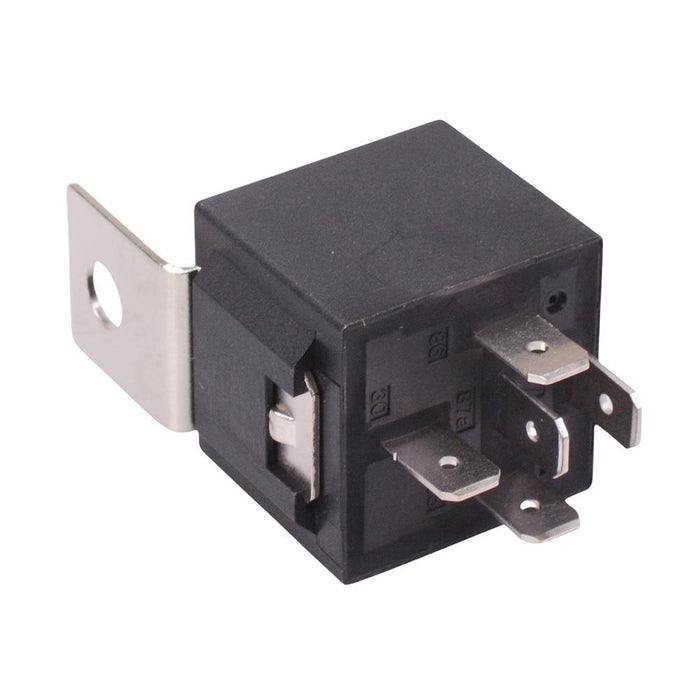

12V mini automotive relay featuring SPDT contacts and diode across the coil protecting your equipment against voltage spikes. The relay features a metal bracket and 6.3mm quick connect terminals, compatible with standard 5 pin sockets. The excellent reliability makes the relay suitable for a wide range of automotive applications and replacing alternative brand relays.
Excellent shock and vibration resistance Wide temperature range Bracket: metal Maximum continuous current: 40A/30A (NO/NC) Contact rating: 14VDC 40A/30A (NO/NC) Coil voltage: 12VDC Coil power: 1.7W Contacts: SPDT Terminals: 6.3mm quick connect Body dimensions: 27.8 x 27.8 x 25.1mm
Specification
| Ambient Temperature | -40°C to +125°C |
| Back Order Lead Time | 120 Days |
| Coil Resistance | 680Ω |
| Coil Voltage | 12VDC |
| Contact Arrangement | SPDT |
| Maximum Switching Current | 40A |
| Maximum Switching Voltage | 80VDC |
| MOQ | 1 |
| Mounting Type | Plug In |
| Number of Contacts | 5 |
| Power Consumption | 1.9W |
| Terminal Type | Quick Connect |
