12V Red illuminated On-Off Toggle Switch SPST
SKU 481748
MPN: 481748
Availability:
182 in stock
Original price
£1.26
-
Original price
£1.26
Original price
£1.26
£1.26
£1.26
-
£1.26
Current price
£1.26

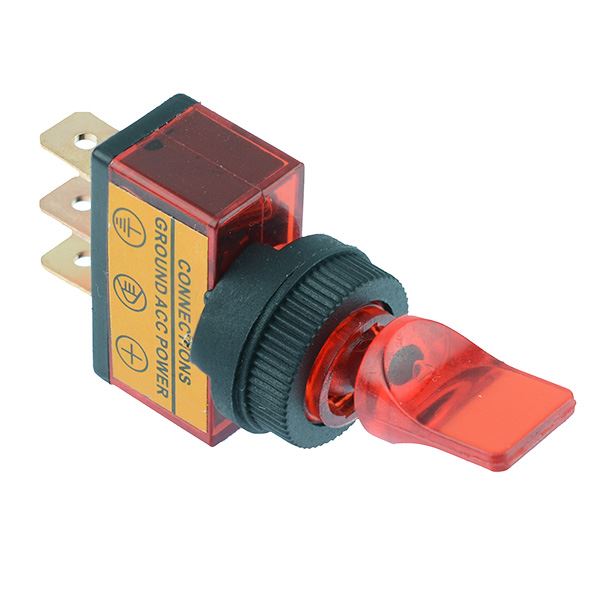

Red illuminated toggle switch featuring On-Off operation and SPST contacts. The switch features quick connect terminals, and is suitable for a wide range of automotive applications.
Operation: On-Off SPST contacts 12V red illumination Rating: 20A 12VDC Panel cut-out: 12mm 6.3mm quick connect terminals Dimensions: 54 x 26.2 x 12mm (Height x Length x Width)
Specification
| Actuation | Latching |
| Back Order Lead Time | 45 Days |
| Contact Configuration | SPST |
| Contact Rating | 20A 12VDC |
| Current Rating | 20A |
| Electrical Life | 10,000 Cycles |
| Illuminated | Yes |
| Illumination Colour | Red |
| Illumination Voltage | 12VDC |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Temperature | -25°C to +85°C |
| Panel Cut Out | 12mm |
| Switch Operation | On-Off |
| Terminal Type | Quick Connect |
| Voltage Rating | 12VDC |
