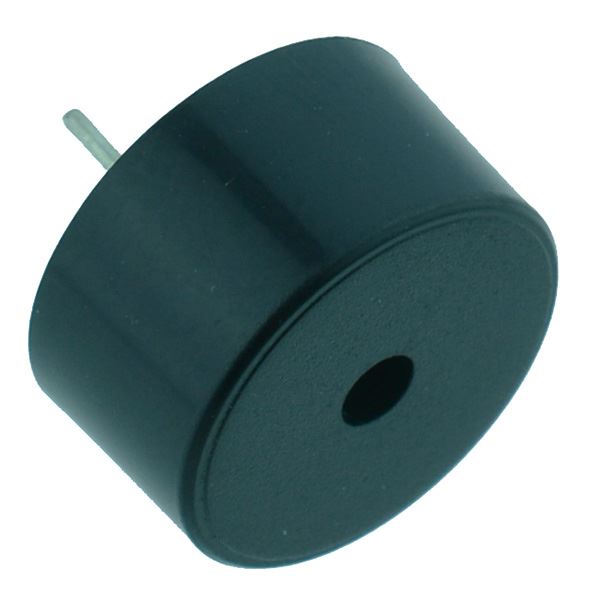

12V Piezo Transducer Buzzer PCB (WIthout Circuit)

SKU 480167

MPN: 480167

833 in stock
Original price £0.43 - Original price £0.43
Original price
£0.43 Inc VAT
£0.43 - £0.43
Current price £0.43 Inc VAT
PCB mounting buzzer featuring a 80dB tone operating from a 12V DC power supply. The buzzer features a 6mm height and the polarity is marked on the case.

  • Without circuit
  • Rated voltage: 12V
  • Maximum rated current: 6mA
  • Low profile design
  • 5mm PCB pin pitch
  • Dimensions: 12 x 6mm (Diameter x Height)
  • Specification
    Back order lead time 30 Days
    Frequency 4.0KHz
    Mounting style PCB Mount
    Operating temperature -20°C to +70°C
    Rated current 6mA
    Rated voltage 12VDC
    Sound output 75dB @ 10cm
