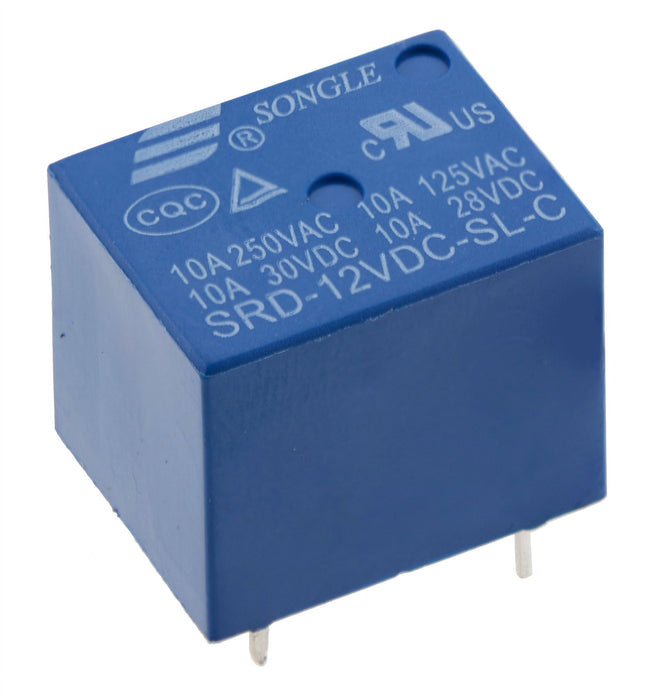

12V Mini Power Songle Relay SPDT 10A

SKU 309001

MPN: 309001

Availability:
Out of stock
Sold out
Original price £0.82 - Original price £0.82
Original price
£0.82 Inc VAT
£0.82 - £0.82
Current price £0.82 Inc VAT
Songle power relay with SPDT contacts suitable for PCB mounting.

  • Compact and sealed construction
  • Coil rated voltage: 12VDC
  • Contacts: SPDT
  • Maximum switching current: 10A
  • Maximum switching voltage: 110VDC, 250VAC
  • Coil Power: 0.45W
  • Dimensions: 19 x 15 x 15mm
  • Specification
    Ambient temperature -25°C to +70°C
    Back order lead time 30 Days
    Coil resistance 320Ω
    Coil voltage 12VDC
    Contact arrangement SPDT
    Maximum continuous voltage 14.4VDC
    Maximum switching current 10A
    Maximum switching voltage 250VAC / 110VDC
    Mounting type PCB
    Number of contacts 5
    Power consumption 0.45W
    Terminal type Through Hole
