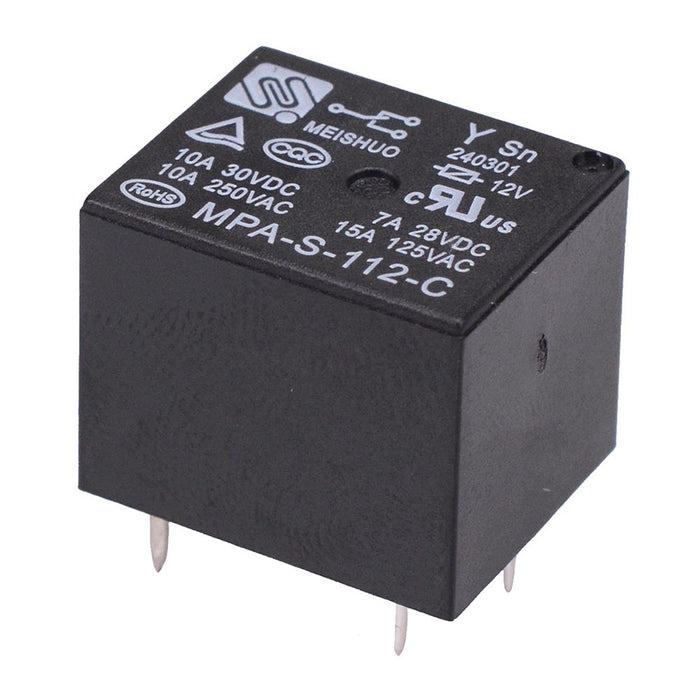

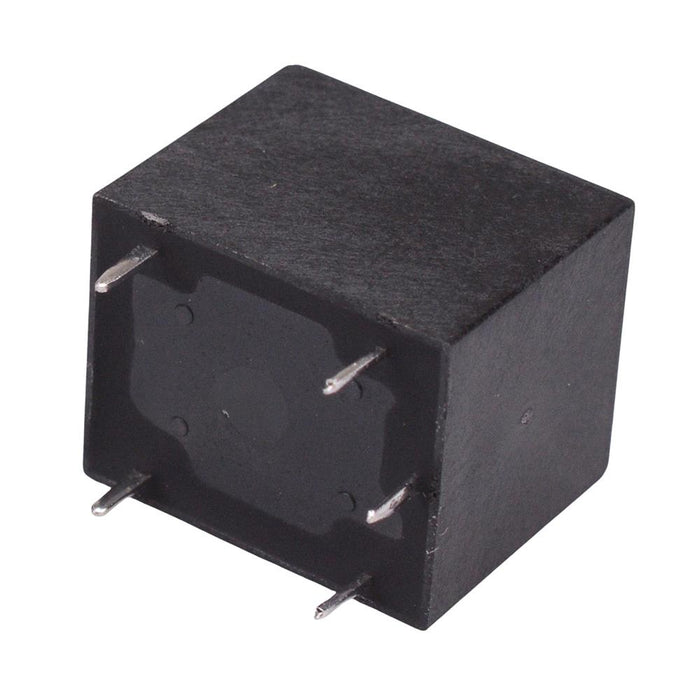

12V Mini Power Relay SPDT 15A

by Meishuo
SKU 309020

MPN: MPA-S-112-C

Availability:
Out of stock
Sold out
Original price £0.70 - Original price £0.70
Original price
£0.70 Inc VAT
£0.70 - £0.70
Current price £0.70 Inc VAT
Miniature power relay with SPDT contacts suitable for PCB mounting.

  • Compact and sealed construction
  • Coil rated voltage: 12VDC
  • Contacts: SPDT
  • Maximum switching current: 15A
  • Maximum switching voltage: 28VDC, 250VAC
  • Coil Power: 0.36W
  • Dimensions: 18.7 x 15 x 15.2mm
  • Specification
    Ambient temperature -40°C to +105°C
    Back order lead time 120 Days
    Coil resistance 400Ω
    Coil voltage 12VDC
    Contact arrangement SPDT
    Maximum continuous voltage 15.6VDC
    Maximum switching current 15A
    Maximum switching voltage 250VAC / 28VDC
    Mounting type PCB
    Number of contacts 5
    Power consumption 0.36W
    Terminal type Through Hole
