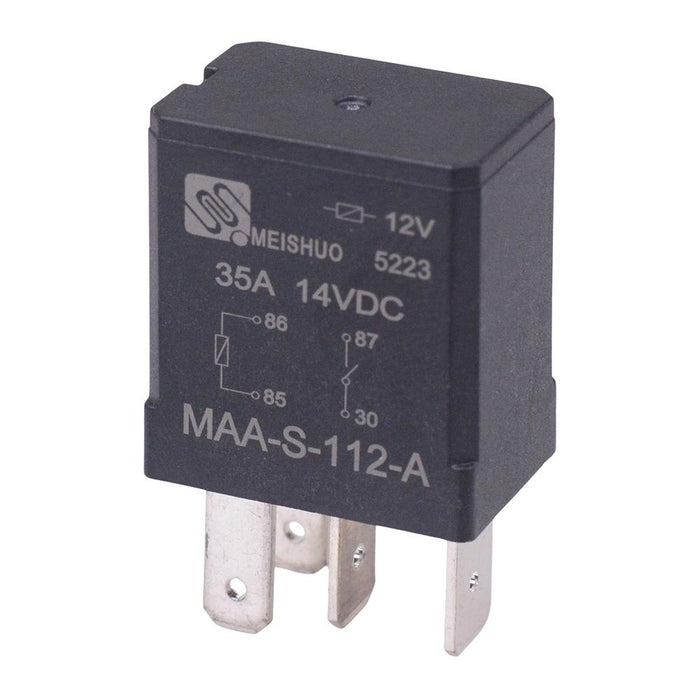

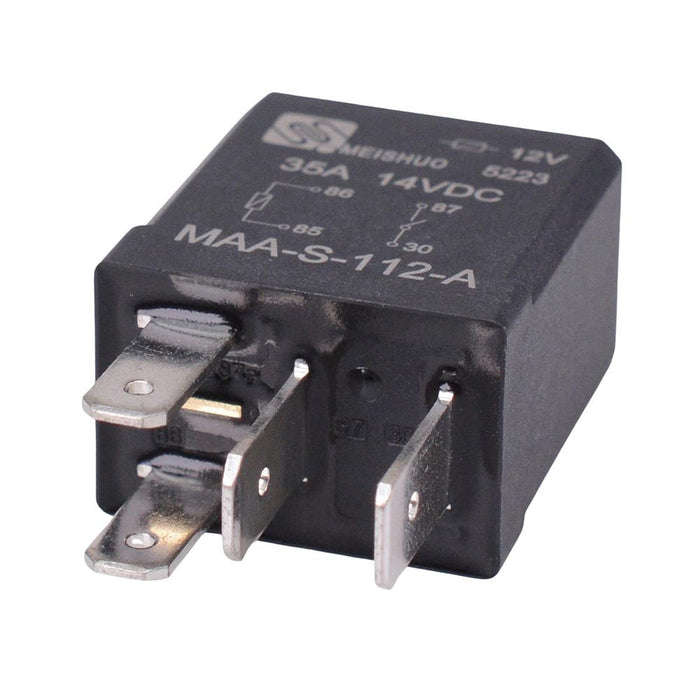

12V Micro Automotive Relay 35A 4-Pin SPNO

by Meishuo
SKU 552334

MPN: MAA-S-112-A

Availability:
515 in stock
Original price £1.57 - Original price £1.57
Original price
£1.57 Inc VAT
£1.57 - £1.57
Current price £1.57 Inc VAT
12V SPNO micro relay with a compact sealed construction to protect from water and damp. Featuring a 35A maximum switching current, the relay is suitable for automotive applications.

  • Maximum switching current: 35A
  • Maximum switching voltage: 40VDC
  • Coil voltage: 12VDC
  • Coil power: 1.6W
  • Sealed IP67 construction
  • SPNO contacts
  • Excellent shock and vibration resistance
  • Wide temperature range
  • Body dimensions: 20.1 x 15.1 x 22.2mm
  • Specification
    Ambient temperature -40°C to +125°C
    Back order lead time 120 Days
    Coil resistance 90Ω
    Coil voltage 12VDC
    Contact arrangement SPNO
    Maximum continuous voltage 15VDC
    Maximum switching current 30A
    Maximum switching voltage 40VDC
    Mounting type Plug In
    Number of contacts 4
    Power consumption 1.8W
    Terminal type Quick Connect
