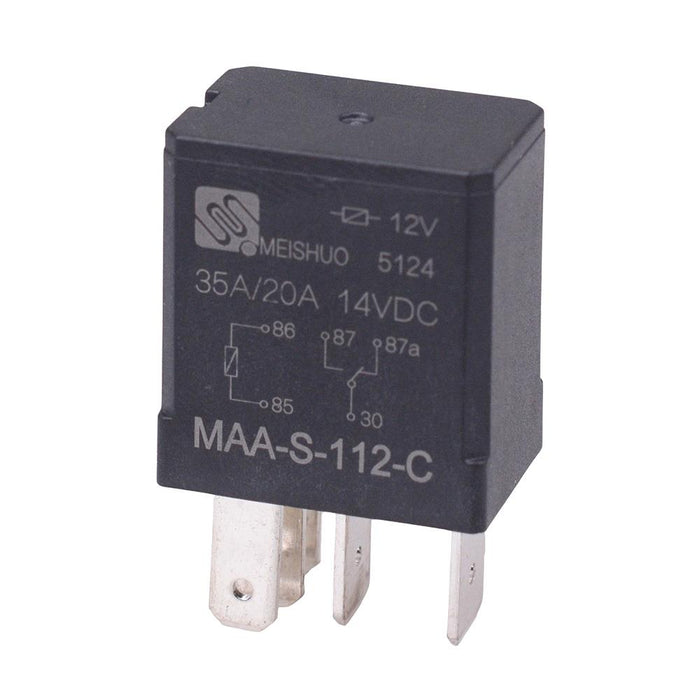

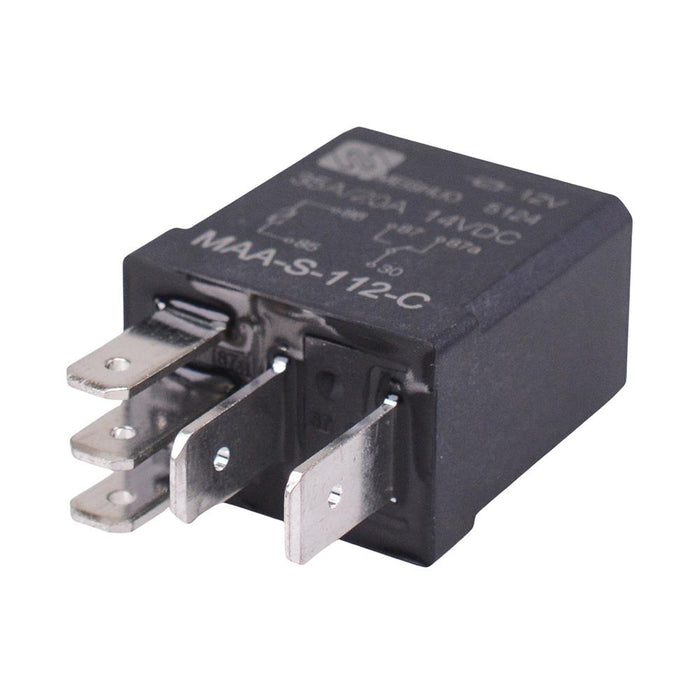

12V Micro Automotive Changeover Relay 35A 5-Pin SPDT

by Meishuo
SKU 309007

MPN: MAA-S-112-C

Availability:
1078 in stock
Original price £1.78 - Original price £1.78
Original price
£1.78 Inc VAT
£1.78 - £1.78
Current price £1.78 Inc VAT
SPDT relay with a compact sealed construction to protect from water and damp, suitable for automotive applications.

  • Maximum switching current: 35A
  • Maximum switching voltage: 40VDC
  • Coil voltage: 12VDC
  • Coil power: 1.6W
  • Sealed IP67 construction
  • SPDT contacts
  • Excellent shock and vibration resistance
  • Wide temperature range
  • Body dimensions: 20.1 x 15.1 x 22.2mm
  • Specification
    Ambient temperature -40°C to +125°C
    Back order lead time 120 Days
    Coil resistance 90Ω
    Coil voltage 12VDC
    Contact arrangement SPDT
    Maximum continuous voltage 15VDC
    Maximum switching current 35A
    Maximum switching voltage 40VDC
    Mounting type Plug In
    Number of contacts 5
    Power consumption 1.8W
    Terminal type Quick Connect
