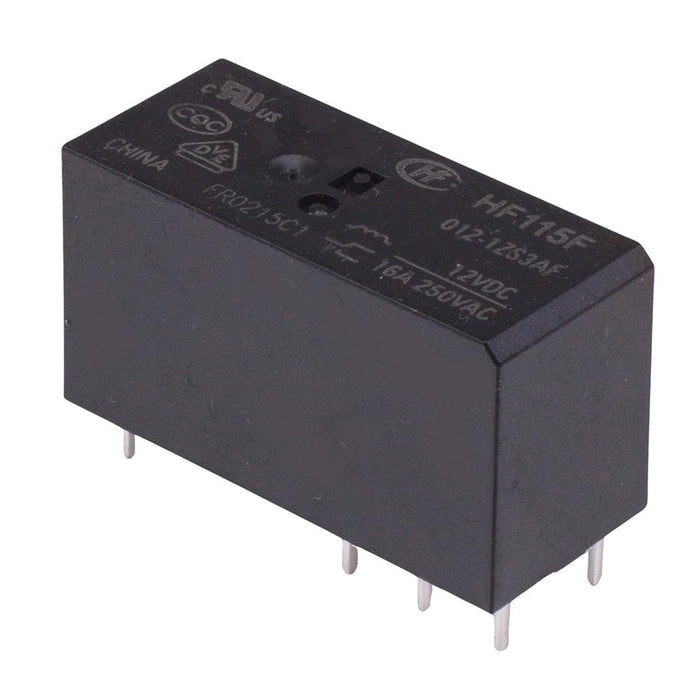

12V High Power Relay SPDT HF115F

by HongFa
SKU 550025

MPN: HF115/012-1Z3AF

Availability:
53 in stock
Original price £2.69 - Original price £2.69
Original price
£2.69 Inc VAT
£2.69 - £2.69
Current price £2.69 Inc VAT
12V Miniature high power relay with SPDT contacts, suitable for PCB mounting.

  • 12V coil voltage
  • SPDT contact configuration
  • Contact rating: 16A 250VAC
  • Maximum switching current: 16A
  • Maximum switching voltage: 440VAC / 300VDC
  • Maximum switching power: 2000VA
  • Dimensions: 29 x 12.7 x 15.7mm (L x W x H)
  • Specification
    Ambient temperature -40°C to +85°C
    Back order lead time 30 Days
    Coil resistance 360Ω
    Coil voltage 12VDC
    Contact arrangement SPDT
    Maximum continuous voltage 18VDC
    Maximum switching current 16A
    Maximum switching voltage 440VAC / 30VDC
    Mounting type PCB
    Number of contacts 5
    Power consumption 0.4W
    Terminal type Through Hole
