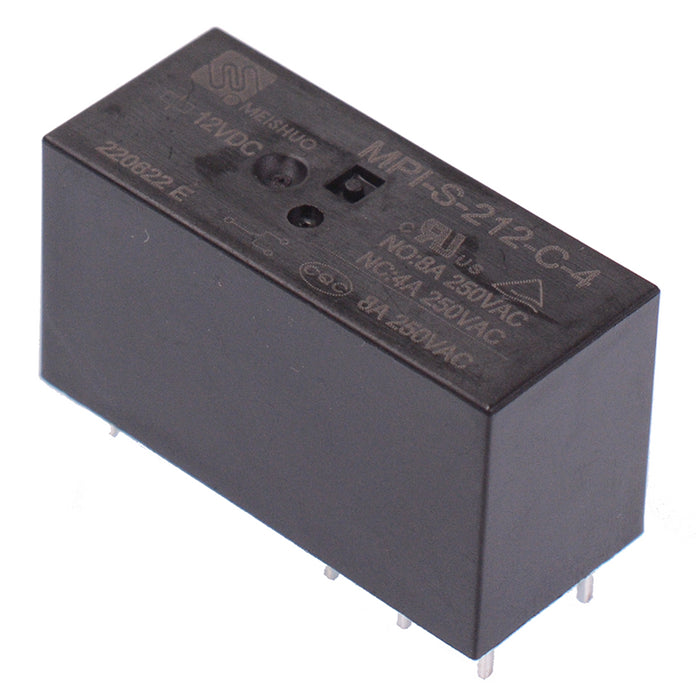

12V High Power PCB Relay 8A DPDT

by Meishuo
SKU 485809

MPN: MPI-S-212-C-4

327 in stock
Original price £3.16 - Original price £3.16
Original price
£3.16 Inc VAT
£3.16 - £3.16
Current price £3.16 Inc VAT
12V miniature high power relay featuring DPDT contacts and 8A maximum switching current, suitable for PCB mounting.

  • 12V coil voltage
  • DPDT contact configuration
  • Sealed construction
  • Rated load: 8A 250VAC
  • Maximum switching current: 8A
  • Maximum switching voltage: 440VAC / 30VDC
  • Maximum switching power: 2000VA
  • Dimensions: 29 x 12.7 x 15.9mm (L x W x H)
  • Specification
    Ambient temperature -40°C to +105°C
    Back order lead time 120 Days
    Coil resistance 267Ω
    Coil voltage 12VDC
    Contact arrangement DPDT
    Maximum continuous voltage 15.6VDC
    Maximum switching current 8A
    Maximum switching voltage 440VAC / 30VDC
    Mounting type PCB
    Number of contacts 8
    Power consumption 0.53W
    Terminal type Through Hole
