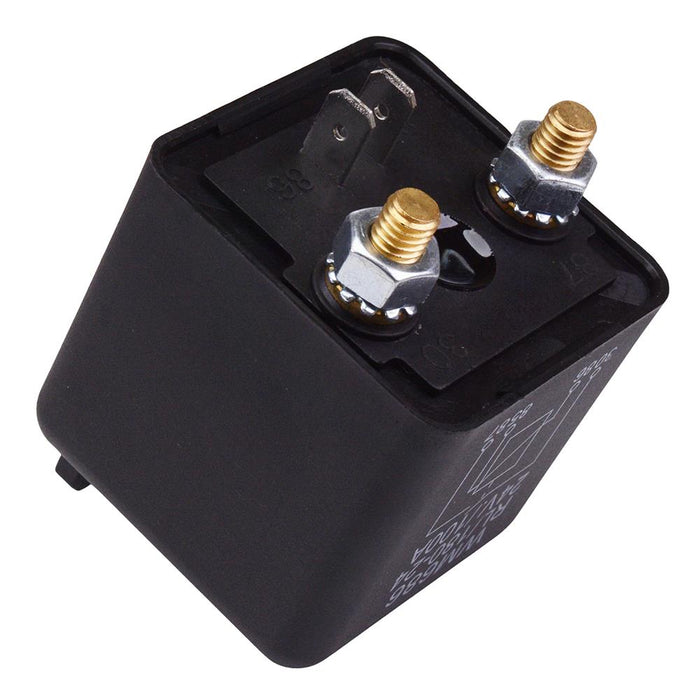

12V Heavy Duty Automotive Relay 100A SPNO
SKU 486733
MPN: 486733
Availability:
108 in stock
Original price
£8.79
-
Original price
£8.79
Original price
£8.79
£8.79
£8.79
-
£8.79
Current price
£8.79
12V high power automotive relay featuring SPNO contacts and plastic mounting bracket. The relay is sealed providing protection from dust and water, suitable for a wide range of automotive applications.
Maximum switching current: 100A Coil voltage: 12VDC Coil power: 4.8W Sealed IP67 construction SPNO contacts Terminals: 6.3mm quick connector and M6 stud Excellent shock and vibration resistance Wide temperature range Body dimensions: 46 x 46 x 44mm (length x width x height)
Specification
| Ambient Temperature | -40°C to +85°C |
| Back Order Lead Time | 30 Days |
| Coil Voltage | 12VDC |
| Contact Arrangement | SPNO |
| Maximum Switching Current | 100A |
| Mounting Type | Bracket |
| Number of Contacts | 4 |
| Power Consumption | 4.8W |
