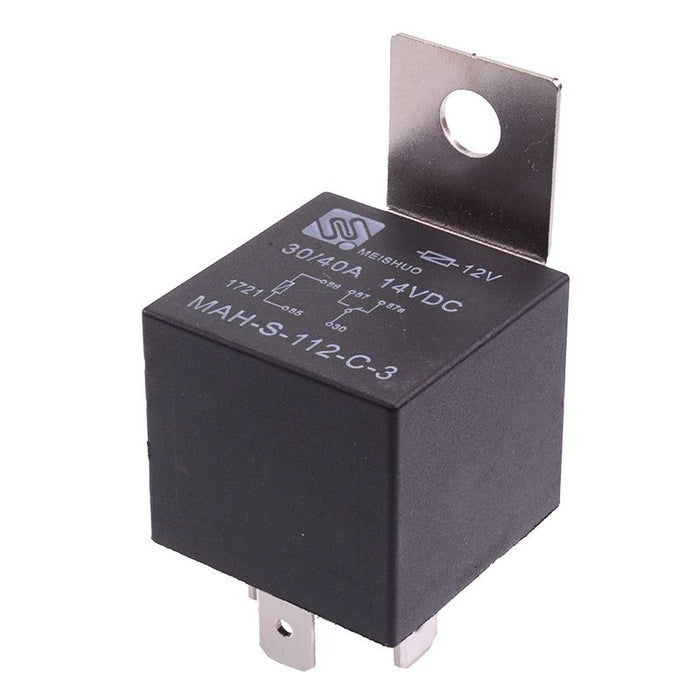

12V Automotive Relay 40A Metal Bracket SPDT 5-Pin

by Meishuo
SKU 550454

MPN: MAH-S-112-C-3

Availability:
1412 in stock
Original price £1.68 - Original price £1.68
Original price
£1.68 Inc VAT
£1.68 - £1.68
Current price £1.68 Inc VAT
Automotive changeover relay with 5-pins and SPDT contacts suitable for general purpose automotive applications. The relay features a metal mounting bracket and has a compact sealed construction to protect from water and damp.

  • Maximum switching current: 40A
  • Maximum switching voltage: 80VDC
  • Coil voltage: 12VDC
  • Coil power: 1.6W
  • Sealed IP67 construction
  • SPDT contacts
  • Excellent shock and vibration resistance
  • Wide temperature range
  • Body dimensions: 28 x 28 x 25mm
  • Specification
    Ambient temperature -40°C to +85°C
    Back order lead time 120 Days
    Coil resistance 90Ω
    Coil voltage 12VDC
    Contact arrangement SPDT
    Maximum continuous voltage 15.7VDC
    Maximum switching current 40A
    Maximum switching voltage 80VDC
    Mounting type Plug In
    Number of contacts 5
    Power consumption 1.6W
    Terminal type Quick Connect
