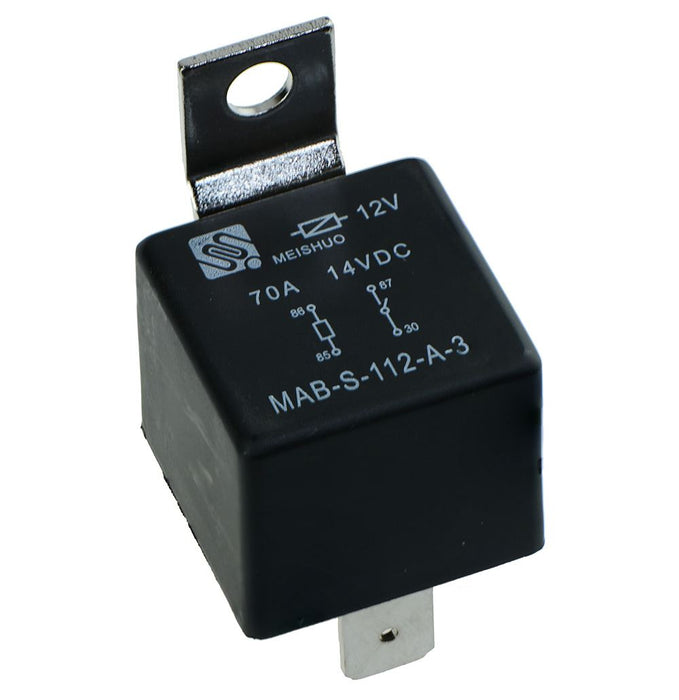

12V Automotive Normally Open Relay 70A 4-Pin SPNO Bracket

by Meishuo
SKU 309021

MPN: MAB-S-112-A-3

Availability:
Out of stock
Sold out
Original price £3.56 - Original price £3.56
Original price
£3.56 Inc VAT
£3.56 - £3.56
Current price £3.56 Inc VAT
Automotive relay with 4-pins and NO contacts suitable for automotive applications where a relay with a high current switching capability is required

  • Maximum switching current: 70A
  • Maximum switching voltage: 60VDC
  • Coil voltage: 50VDC
  • Coil power: 1.8W
  • Sealed IP67 construction
  • NO contacts
  • Excellent shock and vibration resistance
  • Wide temperature range
  • Body dimensions: 26.5 x 26.5 x 25.2mm
  • Specification
    Ambient temperature -40°C to +125°C
    Back order lead time 120 Days
    Coil resistance 90Ω
    Coil voltage 12VDC
    Contact arrangement SPNO
    Maximum switching current 70A
    Maximum switching voltage 50VDC
    Mounting type Plug In
    Number of contacts 4
    Power consumption 1.6W
    Terminal type Quick Connect
