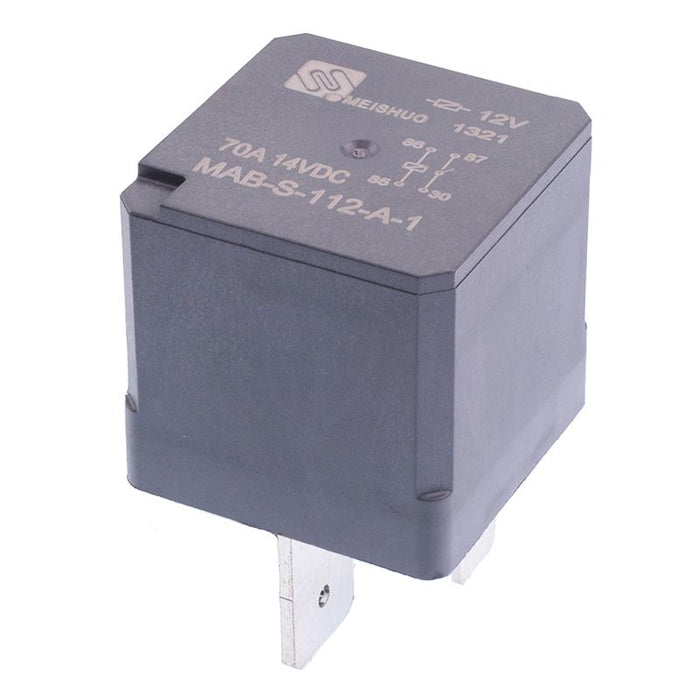

12V Automotive Normally Open Relay 70A 4-Pin SPNO

by Meishuo
SKU 483137

MPN: MAB-S-112-A-1

294 in stock
Original price £2.91 - Original price £2.91
Original price
£2.91 Inc VAT
£2.91 - £2.91
Current price £2.91 Inc VAT
12V automotive relay featuring 4 terminals and SPNO contacts suitable for automotive applications where a relay with a high current switching capability is required.

  • Maximum switching current: 70A
  • Maximum switching voltage: 28VDC
  • Coil voltage: 12VDC
  • Coil power: 1.8W
  • Sealed IP67 construction
  • SPNO contacts
  • Excellent shock and vibration resistance
  • Wide temperature range
  • Body dimensions: 26.5 x 26.5 x 25.2mm
  • Specification
    Ambient temperature -40°C to +125°C
    Back order lead time 120 Days
    Coil resistance 680Ω
    Coil voltage 12VDC
    Contact arrangement SPNO
    Maximum switching current 70A
    Maximum switching voltage 28VDC
    Mounting type Plug In
    Number of contacts 4
    Power consumption 1.6W
    Terminal type Quick Connect
