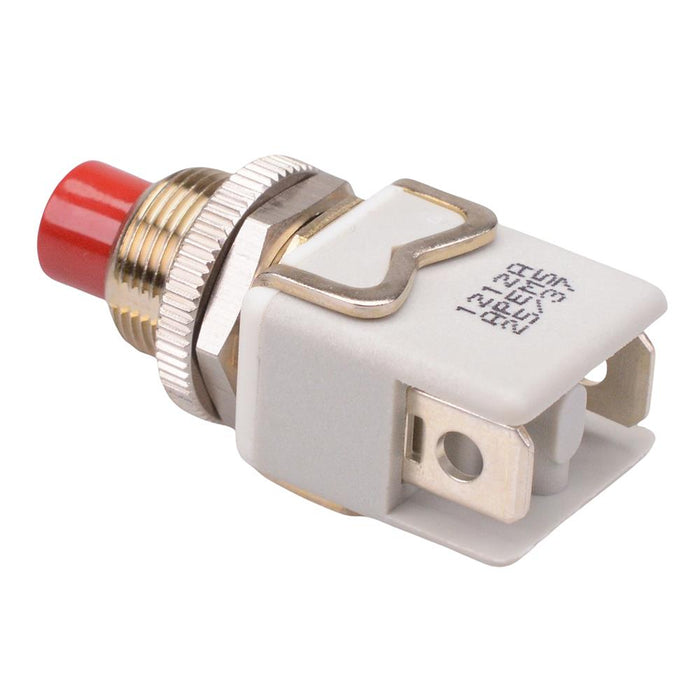

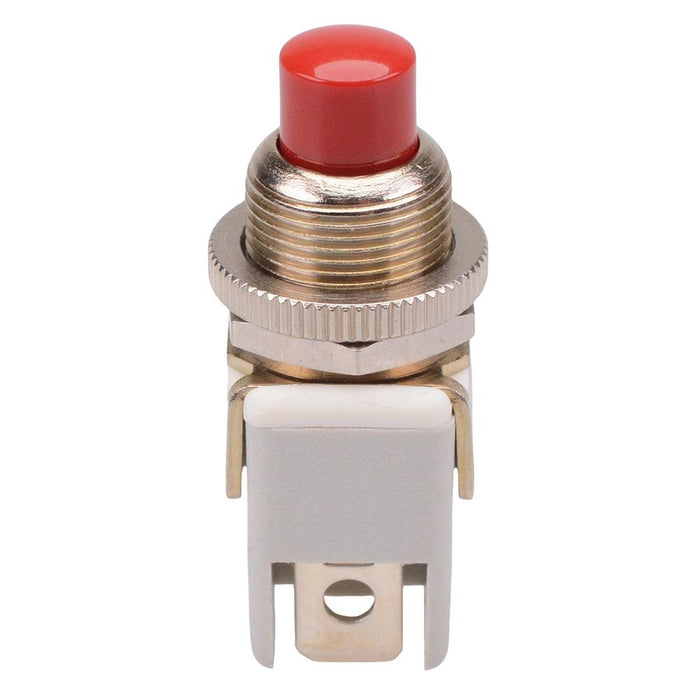

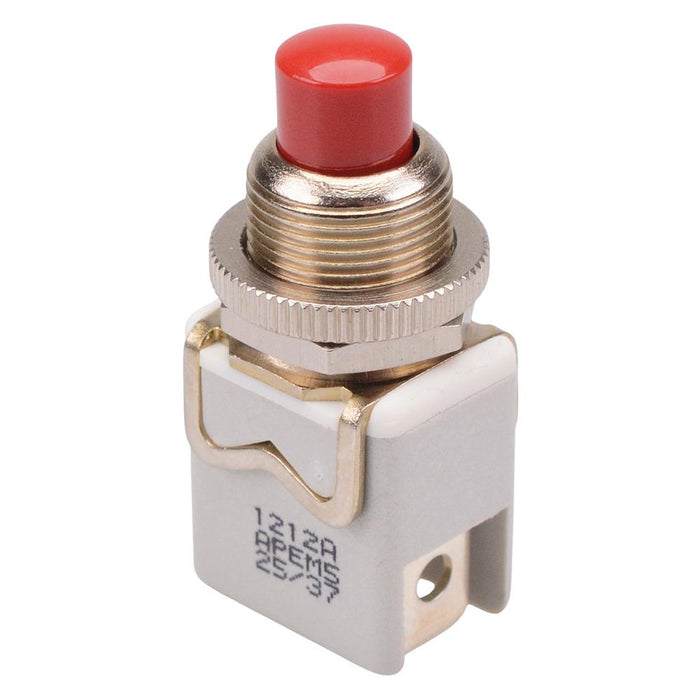

1212A6 APEM On-(Off) Red Momentay Push Button Switch SPST-NC 8A
by APEM
SKU 487824
MPN: 1212A6
Availability:
21 in stock
Original price
£2.11
-
Original price
£2.11
Original price
£2.11
Inc VAT
£2.11
-
£2.11
Current price
£2.11
Inc VAT
The 1212A6 is a momentary push button switch manufactured by APEM, with a round plunger and normally closed contacts. The switch features 6.35mm quick connect terminals and 12mm threaded bushing, suitable for a wide range of applications.
SPST-NC contacts 12mm threaded bushing Solder lug / quick connect terminals Max panel thickness: 5mm Panel cut-out: 12.2mm Silver terminals Rating: 4A 250VAC, 8A 125VAC, 4A 24VDC, 8A 12VDC
Specification
| Actuation | Momentary |
| Back order lead time | 10 Days |
| Colour | Red |
| Contact configuration | SPST |
| Contact material | Silver |
| Contact rating | 4A 250VAC / 24VDC |
| Current rating | 8A |
| Electrical life | 10,000 Cycles |
| Illuminated | No |
| Mounting style | Panel |
| Number of poles | 1 |
| Number of positions | 2 |
| Operating temperature | -20°C to +55°C |
| Panel cut out | 12.2mm |
| Panel thickness | 5mm |
| Product series | 1200 |
| Switch operation | On-(Off) |
| Terminal type | Quick Connect |
| Voltage rating | 250VAC / 24VDC |
