1212A2 APEM On-(Off) Black Momentary Push Button Switch SPST-NC 8A
by APEM
SKU 491640
MPN: 1212A2
Availability:
83 in stock
Save 5%
Original price
£5.86
Original price
£5.86
-
Original price
£5.86
Original price
£5.86
Current price
£5.54
£5.54
-
£5.54
Current price
£5.54

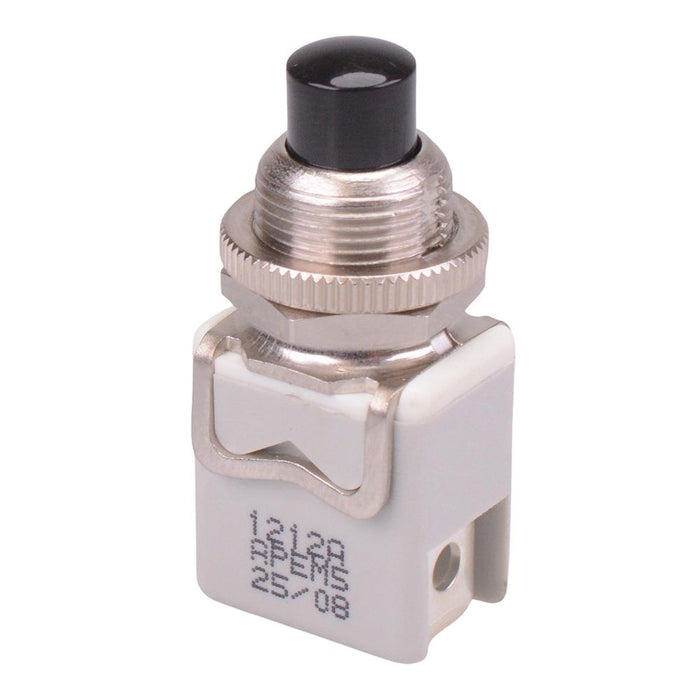

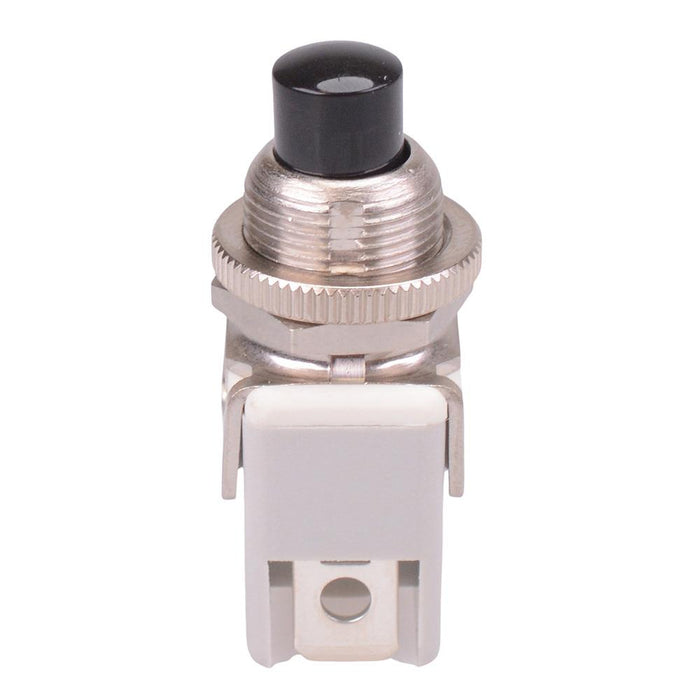

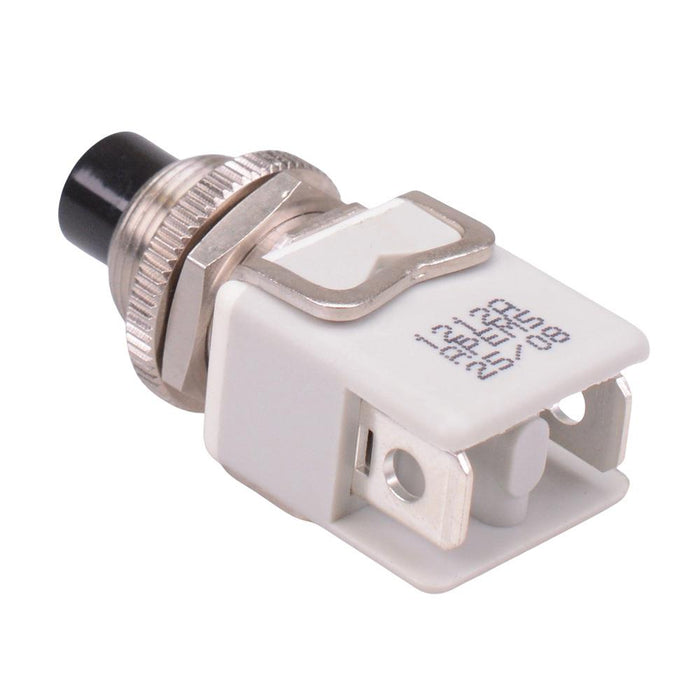

The 1212A2 is a momentary push button switch manufactured by APEM, with a round black plunger and normally closed contacts. The switch features 6.35mm quick connect terminals and 12mm threaded bushing, suitable for a wide range of applications.
SPST-NC contacts 12mm threaded bushing Solder lug / quick connect terminals Max panel thickness: 5mm Panel cut-out: 12.2mm Silver terminals Rating: 4A 250VAC, 8A 125VAC, 4A 24VDC, 8A 12VDC
Specification
| Actuation | Momentary |
| Back Order Lead Time | 140 Days |
| Colour | Black |
| Contact Configuration | SPST |
| Contact Material | Silver |
| Contact Rating | 4A 250VAC / 24VDC |
| Current Rating | 8A |
| Electrical Life | 10,000 Cycles |
| Illuminated | No |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Temperature | -20°C to +55°C |
| Panel Cut Out | 12.2mm |
| Panel Thickness | 5mm |
| Product Series | 1200 |
| Switch Operation | On-(Off) |
| Terminal Type | Quick Connect |
| Voltage Rating | 250VAC / 24VDC |
