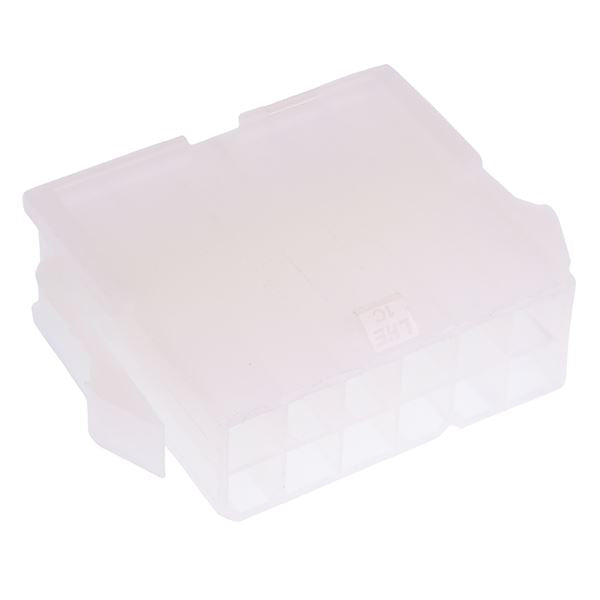

12 Way 4.2mm Mini-Fit Male Housing Connector

SKU 484703

MPN: 484703

Availability:
482 in stock
Original price £0.39 - Original price £0.39
Original price
£0.39 Inc VAT
£0.39 - £0.39
Current price £0.39 Inc VAT
Double row 12 way male housing featuring 4.2mm pitch suitable for mating with a female receptacle. The connector features a lock to ensure secure retention when mated, suitable as a replacement for Molex Mini-Fit.

  • 4.2mm pitch
  • Nylon 66 housing
  • Rated Current: 9A
  • Rated Voltage: 300V
  • Wire range: 16-28AWG
  • Specification
    Back order lead time 45 Days
    Contact material Tin Plated Brass
    Current rating 9A
    Housing material PA66
    Moq 5
    Mounting type Cable Mount
    Number of ways 12
    Operating temperature -25°C to +85°C
    Pitch 4.2mm
    Termination method Crimp
    Voltage rating 300VAC
    Wire range 28-16AWG
