12-Way 3.81mm Right Angle Pluggable Terminal Block 8A 300V

SKU 488187

MPN: AKZ1550/12-3,81-GREEN

Availability:
48 in stock
Original price £1.84 - Original price £1.84
Original price
£1.84 Inc VAT
£1.84 - £1.84
Current price £1.84 Inc VAT

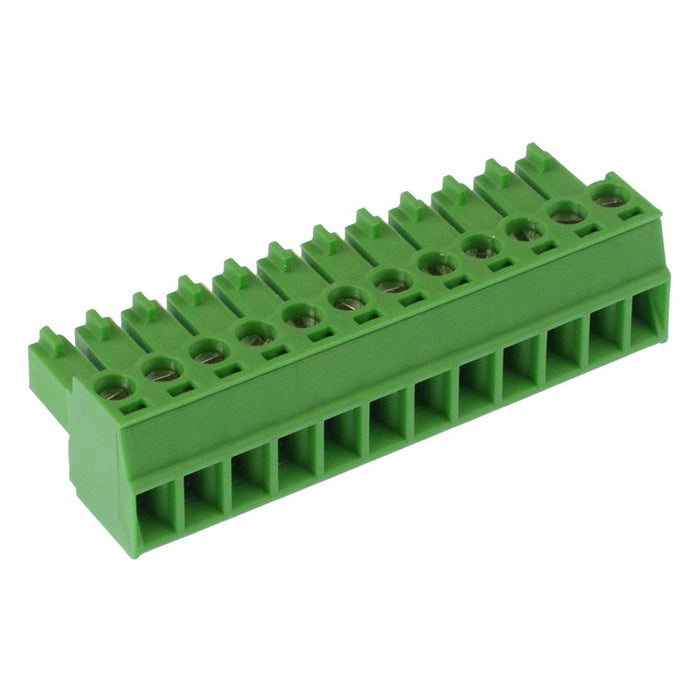

12 pole pluggable terminal block manufactured by PTR HARTMANN, featuring a 3.81mm pitch and parallel wire entry. The terminal blocks are rated up to 8A, making them suitable for a wide range of PCB applications.

  • 12 pole
  • 3.81mm pitch
  • Right angle
  • Material: PA66
  • Rating: 8A 300V
  • Wire size: 28-16AWG
  • Specification
    Back order lead time 10 Days
    Colour Green
    Contact material Brass
    Current rating 8A
    Housing material PA66
    Mounting type Cable Mount
    Number of ways 12
    Operating temperature -40°C to +105°C
    Pitch 3.81mm
    Termination method Screw
    Voltage rating 300VAC
    Wire range 28-16AWG
