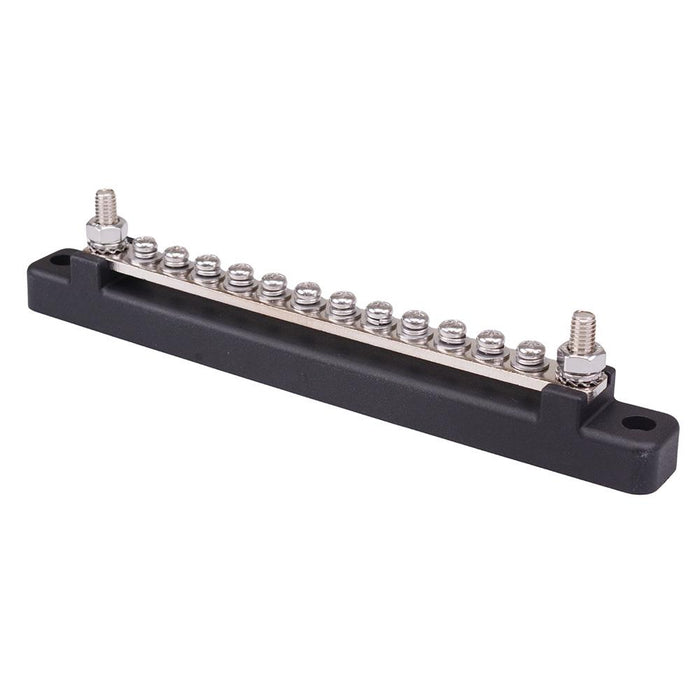

12 Way 150A Power Distribution Busbar

SKU 489048

MPN: SF51033-12SC

Availability:
Only 1 left!
Original price £9.00 - Original price £9.00
Original price
£9.00 Inc VAT
£9.00 - £9.00
Current price £9.00 Inc VAT
12 way power distribution busbar featuring M4 screw terminals and 2*M6 stud terminals. The stud terminals are used as the main power connections and the screw terminals for distributing the power. The busbar comes complete with fastening screws and protective cover.

  • 12*M4 screw terminals
  • 2*M6 stud terminals
  • Protective cover
  • Current rating: 130A AC / 150A DC
  • Voltage rating: 300VAC / 48VDC
  • Dimensions: 181 x 20 x 42.5mm (length x width x height)
  • Specification
    Back order lead time 120 Days
    Colour Black
    Current rating 150A
    Mounting type Chassis Mount
    Termination method Screw
    Voltage rating 48VDC
    Request a quote
