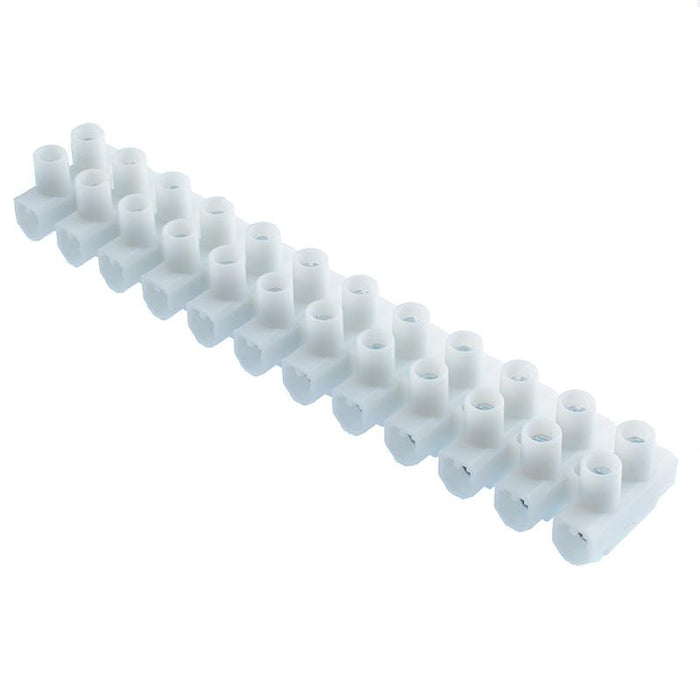

12-Pole Kwik Snap Terminal Block 32A 450V
SKU 552211
MPN: 552211
Availability:
Out of stock
Sold out
Original price
£1.29
-
Original price
£1.29
Original price
£1.29
Inc VAT
£1.29
-
£1.29
Current price
£1.29
Inc VAT
32A 12 pole pillar terminal block featuring Kwik Snap technology allowing the poles to be easily separated without the need for tools. The terminal strips are manufactured from UL94V-2 polypropylene with steel inserts, providing the user a reliable and low cost terminal block assembly solution.
Pitch: 10mm Maximum conductor size: 6mm² Rating: 32A 450V Dimensions: 14 x 20 x 116.5mm (H x W x L) Zinc plated steel inserts VDE approved and rated to T85-110 Complies with IEC/EN60998-1,60998-2-1
Specification
| Back order lead time | 30 Days |
| Colour | White |
| Current rating | 32A |
| Housing material | Polypropylene |
| Mounting type | Cable Mount |
| Number of ways | 12 |
| Pitch | 10mm |
| Termination method | Screw |
| Voltage rating | 450VAC |
| Wire range | 6mm² max |
