10pcs SPST-NO Reed Switch 500mA 200VDC - RI-23A

by Comus
SKU 552497

MPN: RI-23H

Availability:
Only 3 left!
Original price £9.81 - Original price £9.81
Original price
£9.81 Inc VAT
£9.81 - £9.81
Current price £9.81 Inc VAT

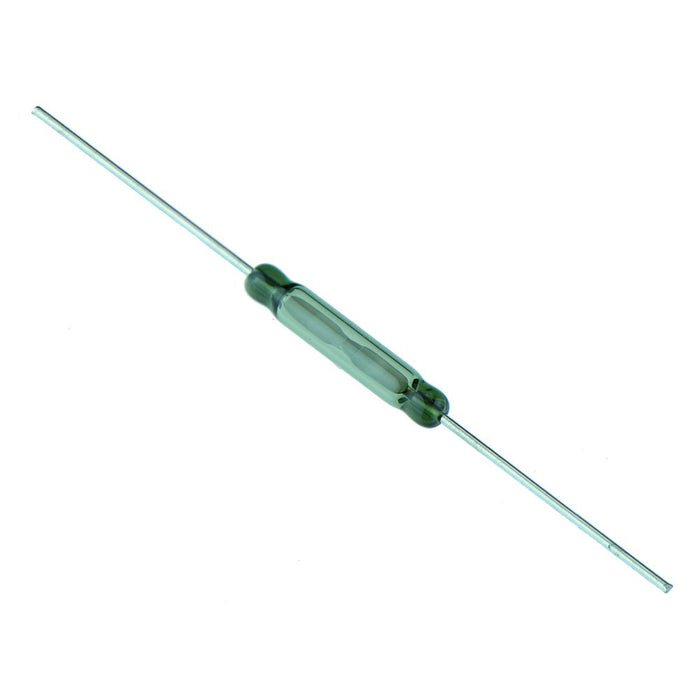

The RI-23A micro dry-reed switch is hermetically sealed in a gas-filled envelope. Single-pole, single-throw (SPST) type, having normally open contacts, and containing two magnetically actuated reeds. The switch is of the double-ended type and may be actuated by an electromagnet, a permanent magnet or a combination of both. The device is intended for use in sensors, relays, pulse counters or similar devices.

  • Pack of 10 switches
  • Ideal for general purpose reed relays and sensors
  • Contact layers: ruthenium on gold
  • Superior glass-to-metal seal and blade alignment
  • Excellent life expectancy and reliability
  • Maximum switching power: 10W
  • Maximum switching voltage: 200VDC, 140VAC
  • Maximum switching current: 500mA
  • Operating range: 18-32AT
  • Specification
    Back order lead time 180 Days
    Bounce time 0.15ms
    Carry current 2.5A
    Contact configuration SPST-NO
    Diameter 2.54mm
    Length 14.5mm
    Material Rhodium
    Maximum switching capacity 10W
    Maximum switching current 0.5A
    Maximum switching voltage 200VDC, 140VAC
    Operating temperature -55°C to +125°C
    Pull in sensitivity 18-32AT
    Release time 30µs
