10pcs SPST-NO Reed Switch 500mA 180VDC - RI-27AAA

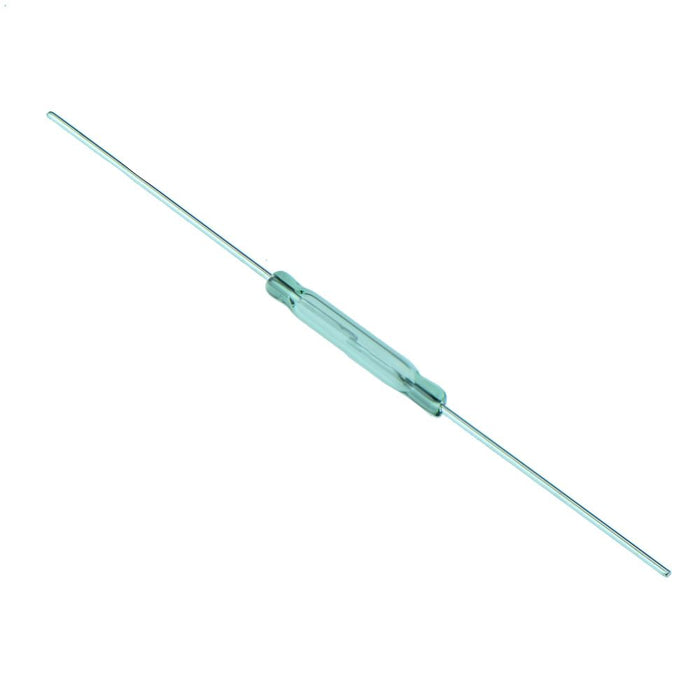

The RI-27AAA pico dry-reed switch is hermetically sealed in a gas-filled envelope. Single-pole, single-throw (SPST) type, having normally open contacts, and containing two magnetically actuated reeds. The switch is of the double-ended type and may be actuated by an electromagnet, a permanent magnet or a combination of both. The device is intended for use in sensors, relays, pulse counters or similar devices.

Pack of 10 switches

Ideal for ATE switching

Contact layers: ruthenium on gold

Superior glass-to-metal seal and blade alignment

Maximum switching power: 10W

Maximum switching voltage: 180VDC, 130VAC

Maximum switching current: 500mA

Operating range: 10-19AT
