10pcs SPST-NO Reed Switch 500mA 170VDC 5-10AT - RI-70H
by Comus
SKU 552509
MPN: RI-70H
Availability:
Out of stock
Sold out
Original price
£8.47
-
Original price
£8.47
Original price
£8.47
£8.47
-
£8.47
Current price
£8.47

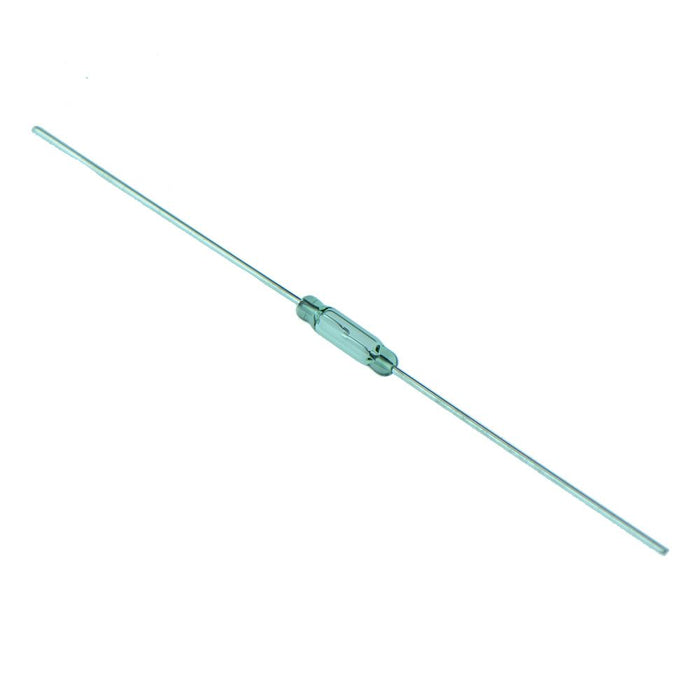

The RI-70 ultra-miniature dry-reed switch is hermetically sealed in a gas-filled envelope. Single-pole, single-throw (SPST) type, having normally open contacts, and containing two magnetically actuated reeds. The switch is of the double-ended type and may be actuated by an electromagnet, a permanent magnet or a combination of both. The device is intended for use in sensors, relays, pulse counters or similar devices.
Pack of 10 switches Ideal for ATE switching Contact layers: ruthenium on gold Superior glass-to-metal seal and blade alignment Excellent life expectancy and reliability Maximum switching power: 10W Maximum switching voltage: 170VDC, 120VAC Maximum switching current: 500mA Operating range: 5-10AT
Specification
| Back Order Lead Time | 180 Days |
| Bounce Time | 0.035ms |
| Carry Current | 0.5A |
| Contact Configuration | SPST-NO |
| Diameter | 1.8mm |
| Length | 7mm |
| Material | Rhodium |
| Maximum Switching Capacity | 10W |
| Maximum Switching Current | 0.5A |
| Maximum Switching Voltage | 170VDC, 120VAC |
| Operating Temperature | -55°C to +125°C |
| Pull In Sensitivity | 5-10AT |
| Release Time | 0.035ms |
