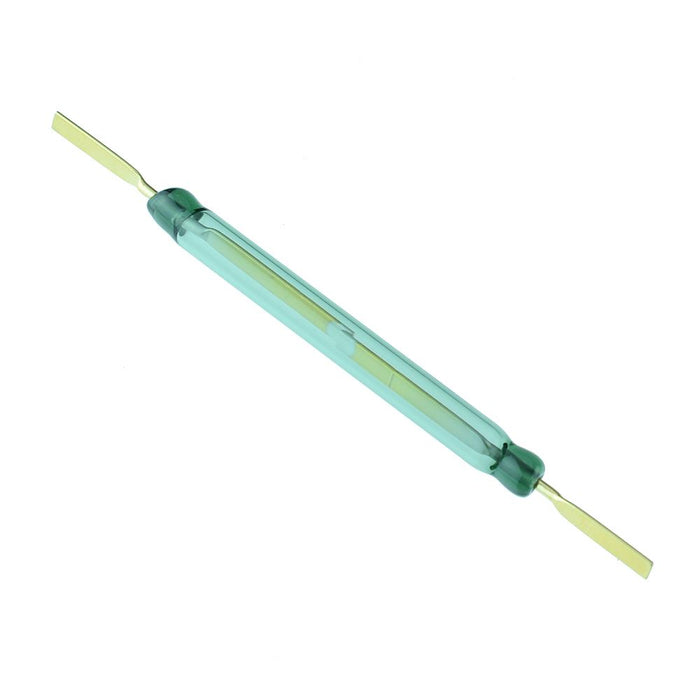

10pcs SPST-NO Reed Switch 3A (80-95AT) - GC1513

by Comus
SKU 552480

MPN: GC1513L

Availability:
Out of stock
Sold out
Original price £43.73 - Original price £43.73
Original price
£43.73
£43.73 - £43.73
Current price £43.73
GC1513 is a dry reed switch that has been hermetically sealed in a gas filled glass housing. The switch features normally open contacts manufactured from Rhodium, and is actuated using an electro-magnet.

  • Pack of 10 switches
  • Normally open contacts
  • Maximum switching voltage: 1500V AC/DC
  • Maximum switching current: 3A
  • Maximum switching power: 120VA
  • Pull-in sensitivity: 80-95AT
  • Specification
    Back Order Lead Time 180 Days
    Bounce Time 3.5ms
    Carry Current 5A
    Contact Configuration SPST-NO
    Diameter 5.4mm
    Drop Out Sensitivity 30AT Min
    Length 52mm
    Material Rhodium
    Maximum Switching Capacity 120VA
    Maximum Switching Current 3A
    Maximum Switching Voltage 1500VAC/DC
    Operating Temperature -40°C to +125°C
    Pull In Sensitivity 80-95AT
    Release Time 0.5ms
