10pcs SPST-NO Reed Switch 2A (35-50AT) - GC3717
by Comus
SKU 552484
MPN: GC3717L
Availability:
26 in stock
Original price
£9.81
-
Original price
£9.81
Original price
£9.81
Inc VAT
£9.81
-
£9.81
Current price
£9.81
Inc VAT

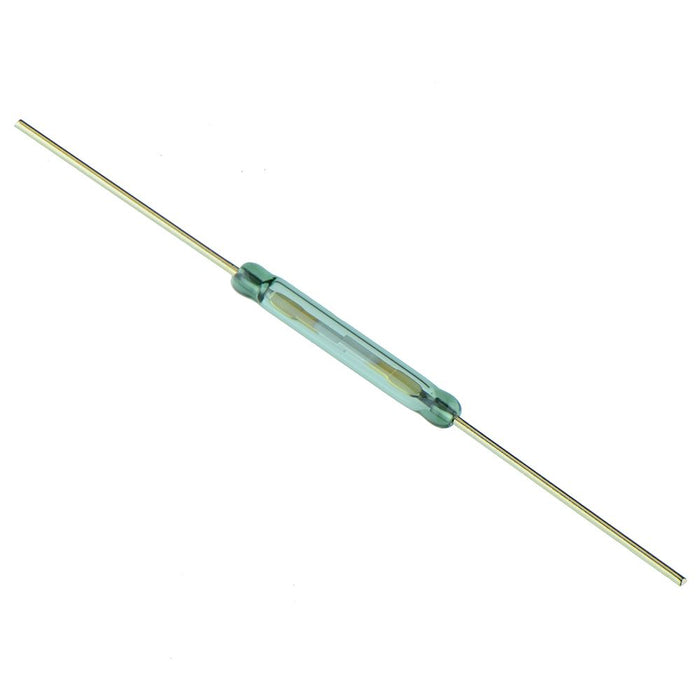

GC3717L is a dry reed switch that has been hermetically sealed in a gas filled glass housing. The switch features normally open contacts manufactured from Rhodium, and is actuated using an electro-magnet.
Pack of 10 switches Normally open contacts Maximum switching voltage: 400V AC/DC Maximum switching current: 2A Maximum switching power: 40VA Pull-in sensitivity: 35-50AT
Specification
| Back order lead time | 180 Days |
| Bounce time | 0.5ms |
| Carry current | 3A |
| Contact configuration | SPST-NO |
| Diameter | 2.6mm |
| Drop out sensitivity | 15AT Min |
| Length | 19mm |
| Material | Rhodium |
| Maximum switching capacity | 40W/VA |
| Maximum switching current | 2A |
| Maximum switching voltage | 400VAC/DC |
| Operating temperature | -40°C to +125°C |
| Pull in sensitivity | 35-50AT |
| Release time | 0.1ms |
