10pcs SPST-NO Reed Switch 250mA 175VDC - RI-80B

by Comus
SKU 552515

MPN: RI-80M

Availability:
Out of stock
Sold out
Original price £10.19 - Original price £10.19
Original price
£10.19 Inc VAT
£10.19 - £10.19
Current price £10.19 Inc VAT

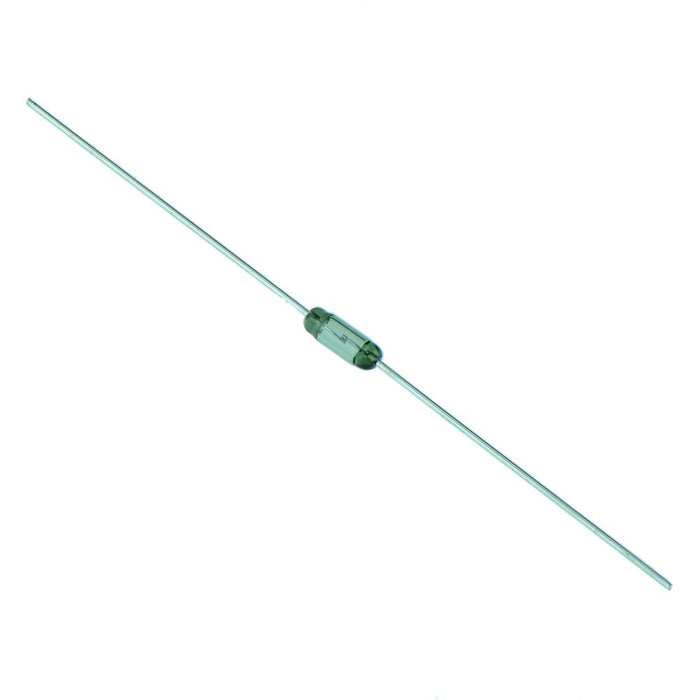

The RI-80B ultra-micro dry-reed switch is hermetically sealed in a gas-filled envelope. Single-pole, single-throw (SPST) type, having normally open contacts, and containing two magnetically actuated reeds. The switch is of the double-ended type and may be actuated by an electromagnet, a permanent magnet or a combination of both. The device is intended for use in sensors, relays, pulse counters or similar devices.

  • Pack of 10 switches
  • Ideal for ATE switching, proximity sensors and medical applications
  • Contact layers: ruthenium on gold
  • Superior glass-to-metal seal and blade alignment
  • Excellent life expectancy and reliability
  • Maximum switching power: 5W
  • Maximum switching voltage: 175VDC, 140VAC
  • Maximum switching current: 250mA
  • Operating range: 10-15AT
  • Specification
    Back order lead time 180 Days
    Bounce time 0.1ms
    Carry current 0.5A
    Contact configuration SPST-NO
    Diameter 1.8mm
    Length 5mm
    Material Rhodium
    Maximum switching capacity 5W
    Maximum switching current 0.25A
    Maximum switching voltage 175VDC, 140VAC
    Operating temperature -55°C to +125°C
    Pull in sensitivity 10-15AT
    Release time 20µs
