10pcs SPST-NO Reed Switch 1A 200VDC - RI-26B
by Comus
SKU 552499
MPN: RI-26L
Availability:
8 in stock
Original price
£7.85
-
Original price
£7.85
Original price
£7.85
Inc VAT
£7.85
-
£7.85
Current price
£7.85
Inc VAT

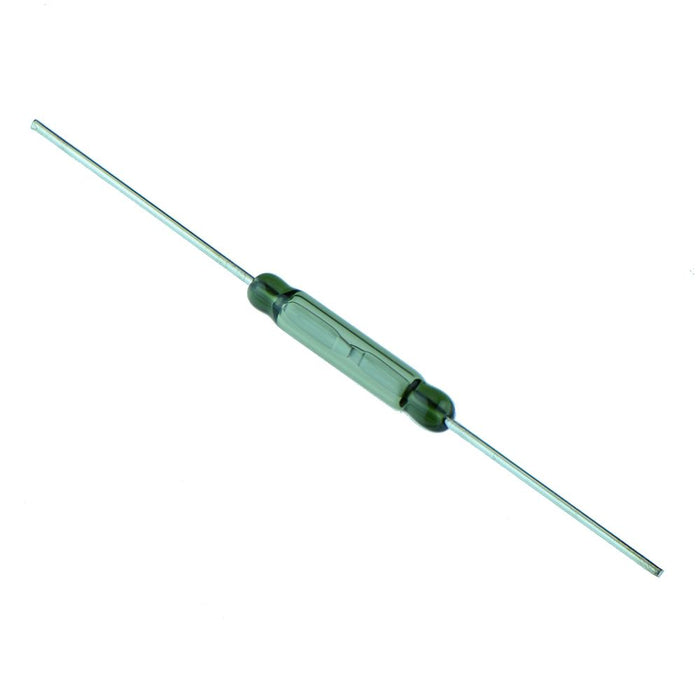

The RI-26B close differential micro dry-reed switch is hermetically sealed in a gas-filled envelope. Single-pole, single-throw (SPST) type, having normally open contacts, and containing two magnetically actuated reeds. The switch is of the double-ended type and may be actuated by an electromagnet, a permanent magnet or a combination of both. The device is intended for use in applications with small hysteresis in switching behaviour.
Pack of 10 switches Close differential reed switch Contact layers: ruthenium on gold Superior glass-to-metal seal and blade alignment Excellent life expectancy and reliability Maximum switching power: 20W Maximum switching voltage: 200VDC, 140VAC Maximum switching current: 1A Operating range: 28-52AT
Specification
| Back order lead time | 180 Days |
| Bounce time | 0.15ms |
| Carry current | 1.75A |
| Contact configuration | SPST-NO |
| Diameter | 2.54mm |
| Length | 14.5mm |
| Material | Rhodium |
| Maximum switching capacity | 20W |
| Maximum switching current | 1A |
| Maximum switching voltage | 200VDC, 140VAC |
| Operating temperature | -55°C to +125°C |
| Pull in sensitivity | 28-52AT |
| Release time | 30µs |
