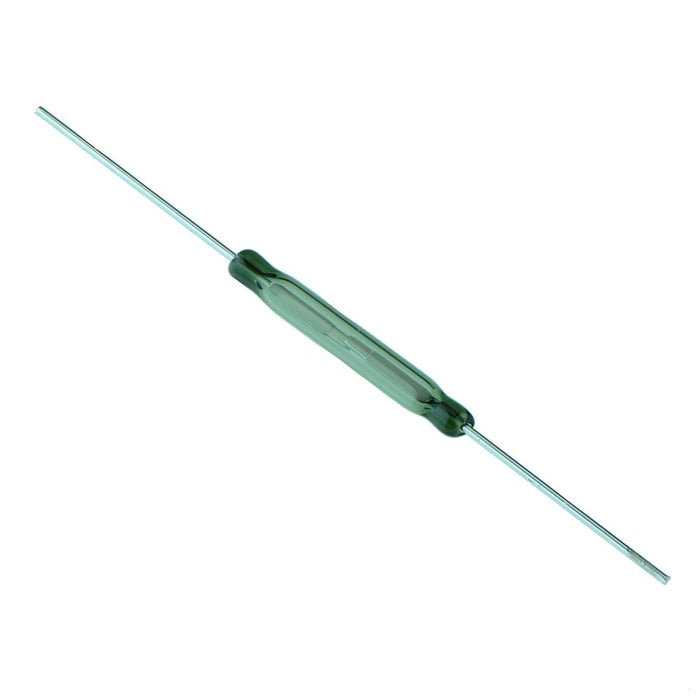

10pcs SPST-NO Reed Switch 1A 200VDC 250VAC - RI-46B

by Comus
SKU 552507

MPN: RI-46M

Availability:
17 in stock
Original price £6.91 - Original price £6.91
Original price
£6.91
£6.91 - £6.91
Current price £6.91
The RI-46B micro dry-reed switch is hermetically sealed in a gas-filled envelope. Single-pole, single-throw (SPST) type, having normally open contacts, and containing two magnetically actuated reeds. The switch is of the double-ended type and may be actuated by an electromagnet, a permanent magnet or a combination of both. The device is intended for use in sensors, relays, pulse counters or similar devices.

  • Pack of 10 switches
  • Can switch main voltage
  • Contact layers: ruthenium on gold
  • Superior glass-to-metal seal and blade alignment
  • Excellent life expectancy and reliability
  • Maximum switching power: 40W
  • Maximum switching voltage: 200VDC, 250VAC
  • Maximum switching current: 1A
  • Operating range: 24-51AT
  • Specification
    Back Order Lead Time 180 Days
    Bounce Time 0.15ms
    Carry Current 3A
    Contact Configuration SPST-NO
    Diameter 2.7mm
    Length 20.5mm
    Material Rhodium
    Maximum Switching Capacity 40W
    Maximum Switching Current 1A
    Maximum Switching Voltage 200VDC, 250VAC
    Operating Temperature -55°C to +125°C
    Pull In Sensitivity 24-51AT
    Release Time 30µs
