10pcs SPDT Reed Switch 400mA 175VDC 10-15AT - RI-90

by Comus
SKU 552517

MPN: RI-90H

Availability:
21 in stock
Original price £19.24 - Original price £19.24
Original price
£19.24
£19.24 - £19.24
Current price £19.24

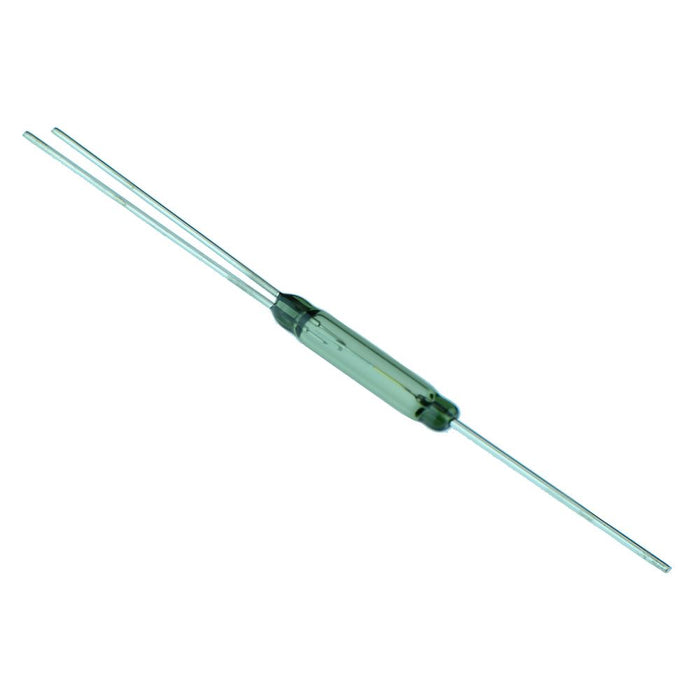

The RI-90 ultra-micro dry-reed switch is hermetically sealed in a gas-filled envelope. Single-pole, double-throw (SPDT) type, having a normally open contact and a normally closed contact. The switch may be actuated by an electromagnet, a permanent magnet or a combination of both. The device is intended for use in sensors, relays, pulse counters or similar devices.

  • Pack of 10 switches
  • Ideal for ATE switching and proximity sensors
  • Contact layers: ruthenium on gold
  • Superior glass-to-metal seal and blade alignment
  • Excellent life expectancy and reliability
  • Maximum switching power: 5W
  • Maximum switching voltage: 175VDC, 125VAC
  • Maximum switching current: 400mA/DC 280mA/AC
  • Operating range: 10-15AT
  • Specification
    Back Order Lead Time 180 Days
    Bounce Time 1.5ms
    Carry Current 0.5A
    Contact Configuration SPDT
    Diameter 2.54mm
    Length 14.3mm
    Material Rhodium
    Maximum Switching Capacity 5W
    Maximum Switching Current 0.28A AC, 0.4A DC
    Maximum Switching Voltage 175VDC, 125VAC
    Operating Temperature -55°C to +125°C
    Pull In Sensitivity 10-15AT
    Release Time 1ms
