10K Logarithmic 9mm Potentiometer Knurled 6mm Shaft
SKU 482334
MPN: 482334
Availability:
988 in stock
Original price
£0.58
-
Original price
£0.58
Original price
£0.58
£0.58
-
£0.58
Current price
£0.58

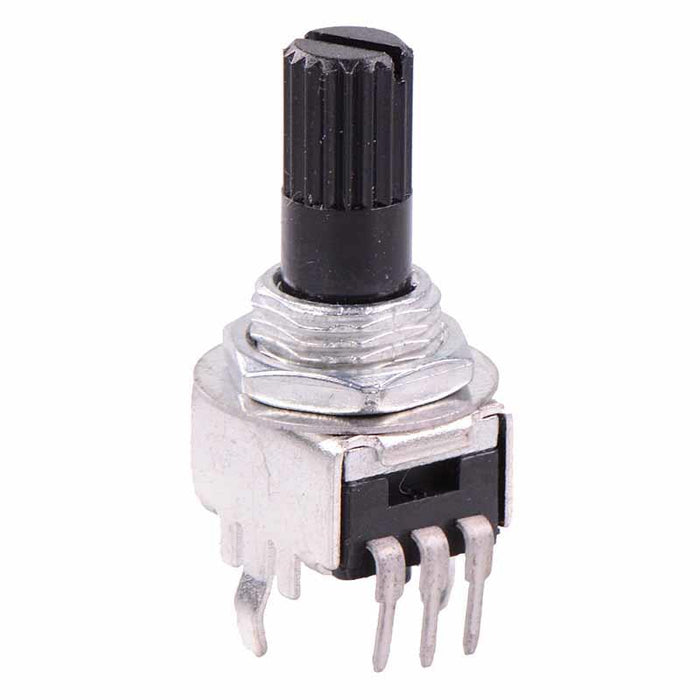

10K logarithmic 9mm potentiometer featuring an insulated 6mm splined shaft and snap-in clip. The potentiometers are suitable for PCB or panel mount applications including use with communications equipment, consumer goods, portable electronics, commercial appliances and sound equipment.
Insulated 6mm splined shaft Snap-in clip 9mm panel cut-out ±20% tolerance 25mm shaft length 0.05W power rating 50V AC / 20V DC maximum operating voltage
Specification
| Back Order Lead Time | 45 Days |
| Maximum Voltage | 50VAC / 20VDC |
| Mounting Hole Diameter | 9mm |
| Mounting Type | PCB |
| Operating Temperature | -10°C to +70°C |
| Pitch | 2.5mm |
| Power Rating | 0.05W |
| Resistance | 10KΩ |
| Shaft Diameter | 6mm |
| Taper | Logarithmic |
| Termination Type | Pin |
| Tolerance | ±20% |
| Total Rotation | 280° |
