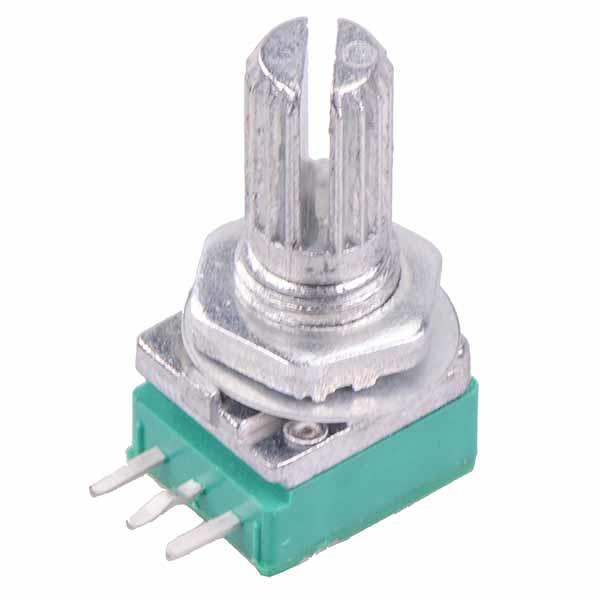

10K Logarithmic 9mm Potentiometer Knurled 6mm Metal Shaft

SKU 482352

MPN: 482352

378 in stock
Original price £0.57 - Original price £0.57
Original price
£0.57 Inc VAT
£0.57 - £0.57
Current price £0.57 Inc VAT
10K logarithmic 9mm potentiometer featuring a metal 6mm splined shaft. The potentiometers are suitable for PCB or panel mount applications including use with communications equipment, consumer goods, portable electronics, commercial appliances and sound equipment.

  • Metal 6mm splined shaft
  • 7mm panel cut-out
  • ±20% tolerance
  • 15mm shaft length
  • 0.025W power rating
  • 25V AC maximum operating voltage
  • Specification
    Back order lead time 45 Days
    Maximum voltage 50VAC / 20VDC
    Mounting hole diameter 9mm
    Mounting type PCB
    Operating temperature -10°C to +70°C
    Pitch 2.5mm
    Power rating 0.05W
    Resistance 10KΩ
    Shaft diameter 6mm
    Taper Logarithmic
    Termination type Pin
    Tolerance ±20%
    Total rotation 280°
