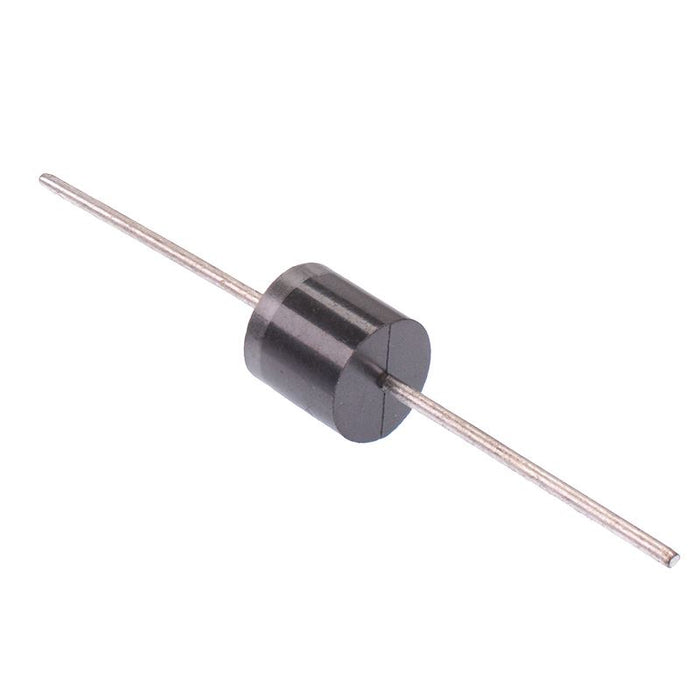

10A10 Rectifier Diode 10A 1000V

SKU 402041

MPN: 10A10

Out of stock
Sold out
Original price £0.19 - Original price £0.19
Original price
£0.19 Inc VAT
£0.19 - £0.19
Current price £0.19 Inc VAT
10A axial rectifier diode with fast switching times suitable for general applications where a high current is required.

  • Low reverse leakage
  • High forward surge current capability
  • Axial leads
  • 1000V maximum repetitive peak reverse voltage
  • 10A maximum average forward output rectified current
  • 500A peak forward surge current
  • Specification
    Average rectified current 10A
    Back order lead time 40 Days
    Body dimensions 9.1 x 9.1mm (Length x Diameter)
    Lead dimensions 25.4 x 1.3mm (Length x Diameter)
    Maximum dc blocking voltage 1000V
    Maximum forward voltage 1V
    Maximum rms voltage 700V
    Moq 5
    Mounting style Through Hole
    Operating temperature -65°C to 175°C
    Package R-6
    Packaging Tape
    Peak reverse voltage 1000V
    Peak surge current 500A
