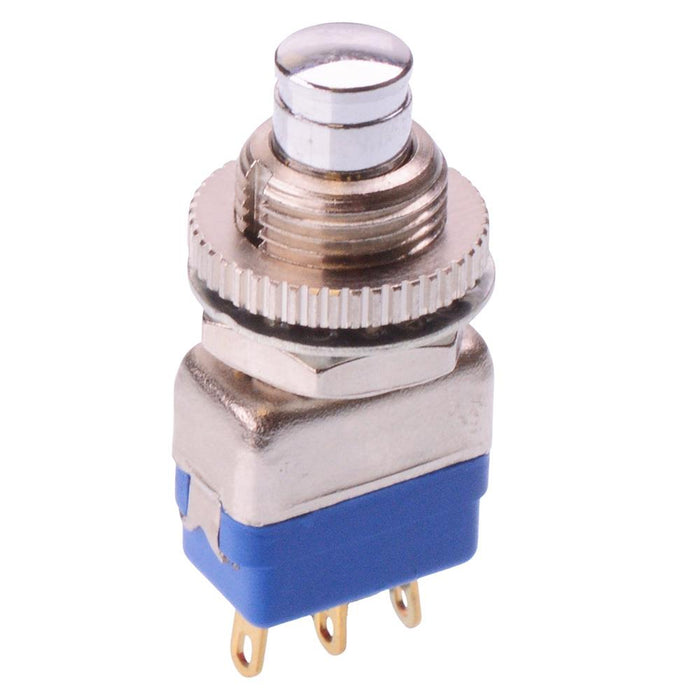

104350108 APEM On-(On) Momentary Professional 10mm Push Button Switch SPDT

by APEM
SKU 487662

MPN: 104350108

Availability:
43 in stock
Original price £7.43 - Original price £7.43
Original price
£7.43 Inc VAT
£7.43 - £7.43
Current price £7.43 Inc VAT
The 104350108 is a professional push button switch with a 10mm threaded bushing, manufactured by APEM. The switch features SPDT contacts and gold plated contacts suitable for demanding applications.

  • SPDT contacts
  • On-(On) momentary function
  • 10mm threaded bushing
  • Gold palted silver terminals
  • Rating: 3A 24VDC
  • Max panel thickness: 3.5mm
  • CECC approved
  • Specification
    Actuation Momentary
    Back order lead time 10 Days
    Contact configuration SPDT
    Contact material Gold Plated Silver
    Contact rating 3A 24VDC
    Current rating 3A
    Electrical life 50,000 Cycles
    Illuminated No
    Mounting style Panel
    Number of poles 1
    Number of positions 2
    Operating temperature -40°C to +85°C
    Panel cut out 10.2mm
    Panel thickness 3.5mm
    Product series 10400
    Switch operation On-(On)
    Terminal type Solder
    Voltage rating 24VDC
