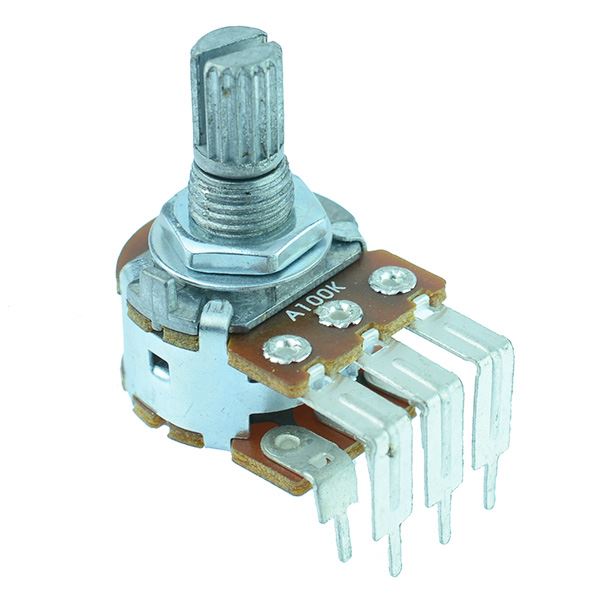

100K Logarithmic Stereo Right Angle PCB 16mm Potentiometer

SKU 481624

MPN: 481624

Availability:
353 in stock
Original price £0.72 - Original price £0.72
Original price
£0.72
£0.72 - £0.72
Current price £0.72
100k logarithmic stereo potentiometer featuring right angle PCB contacts and splined 6mm shaft.

  • 100k logarithmic
  • Standard 16mm diameter size
  • 20% tolerance
  • Panel cut-out: 7mm
  • 5mm pitch
  • 15mm shaft length
  • Specification
    Back Order Lead Time 45 Days
    Dimensions 17mm Diameter
    Maximum Voltage 150V
    Mounting Hole Diameter 7mm
    Mounting Type PCB
    Operating Temperature -25°C to +70°C
    Pitch 5mm
    Power Rating 0.063W
    Resistance 100KΩ
    Shaft Diameter 6mm
    Taper Logarithmic
    Termination Type Pin
    Tolerance ±20%
    Total Rotation 300°
